PRX 102/100 PROCAB Microphone cable on reel (100m)
PRX 102/100 PROCAB - 100 m balanced microphonecable on reel
The PRX102 is a HighFlex balanced microphone cable (RMC306) assembled on a lightweight, extremely strong and impact resistant plastic reel (CDM310). The conductor section is constructed using two 24 AWG stranded conductors which are su...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
PRX 102/100 PROCAB Microphone cable on reel (100m)
PRX 102/100 PROCAB - 100 m balanced microphonecable on reel

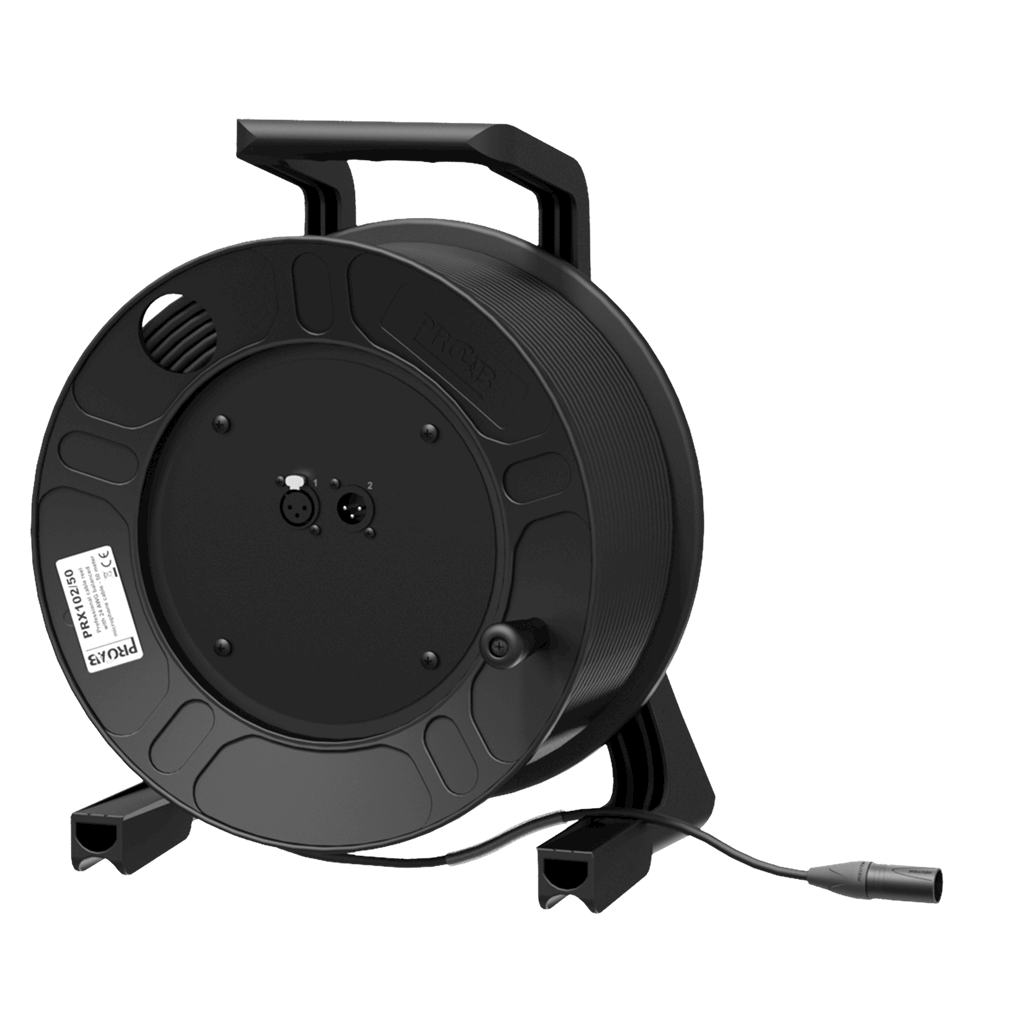

The PRX102 is a HighFlex balanced microphone cable (RMC306) assembled on a lightweight, extremely strong and impact resistant plastic reel (CDM310). The conductor section is constructed using two 24 AWG stranded conductors which are surrounded by a braided shielding, offering a high immunity against noise and interference caused by external devices. The cable is jacketed using highly flexible and durable PVC materials, which guarantee a high flexibility and reliability for mobile applications. The cable end is terminated using a male Neutrik XLR connector (Silver contacts, black metal XLR housing) while the chassis side is fitted with both a male and female NeutrikXLR connector allowing linkthrough.
Features
- Silver contacts, black metal XLR housing
Specifications
| PHYSICAL CHARACTERISTICS | |||
|---|---|---|---|
| Type of cable | 24 AWG Microphone cable | ||
| Inner conductor | BC 20 x 0.12 mm (Ø) (OFC) | ||
| Section | 0.22 mm² | ||
| Number of conductors | 2 | ||
| Insulation | |||
| Shielding Braiding | BC 16 x 4 x 0.12 mm (Ø) (OFC) | ||
| Filling | Cotton Yarn | ||
| Separator | Cotton paper | ||
| Outer jacket | Flexible PVC 6.0 mm (Ø) | ||
| Colours | Black | ||
| Connection type | XLR male (cable) to XLR female & male (chassis) | ||
| Fitted connectors | NC3 mXX-BAG, NC3FDLX, NC3 mDLX | ||
| ELECTRICAL CHARACTERISTICS | |||
| Dielectric strength | 2 (KV / 1 min. DC) | ||
| Rated voltage | 300 V | ||
| Max. conductor | 87 (O / Km) | ||
| Shielding effectiveness | > 55 dB | ||
| Max. shielding DC resistance | 38 (O / Km) | ||
| PRODUCT FEATURES | |||
| Dimensions | 312 x 392 x 234 mm (W x H x D) | ||
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 312 x 392 x 234 mm (W x H x D) |
| Cable | |
|---|---|
| Conductor gauge | 0,22 mm² |
| Cable length | 100m |
