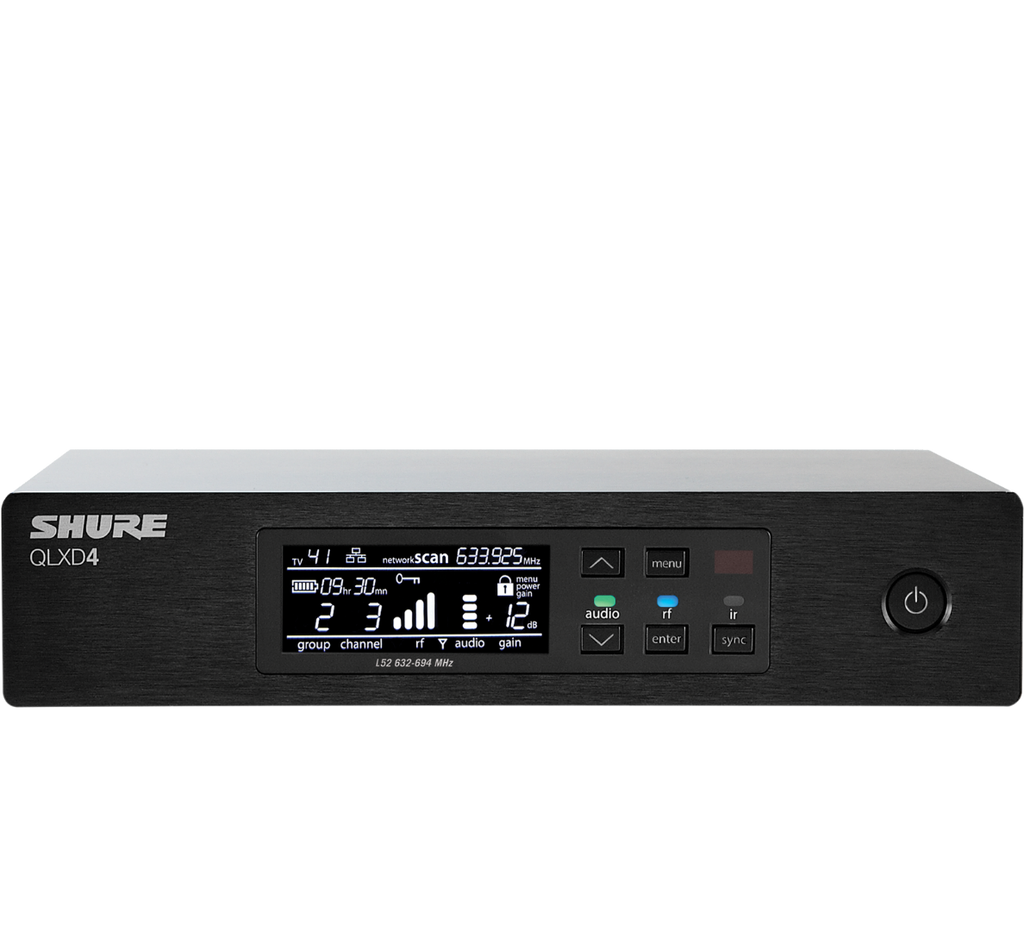

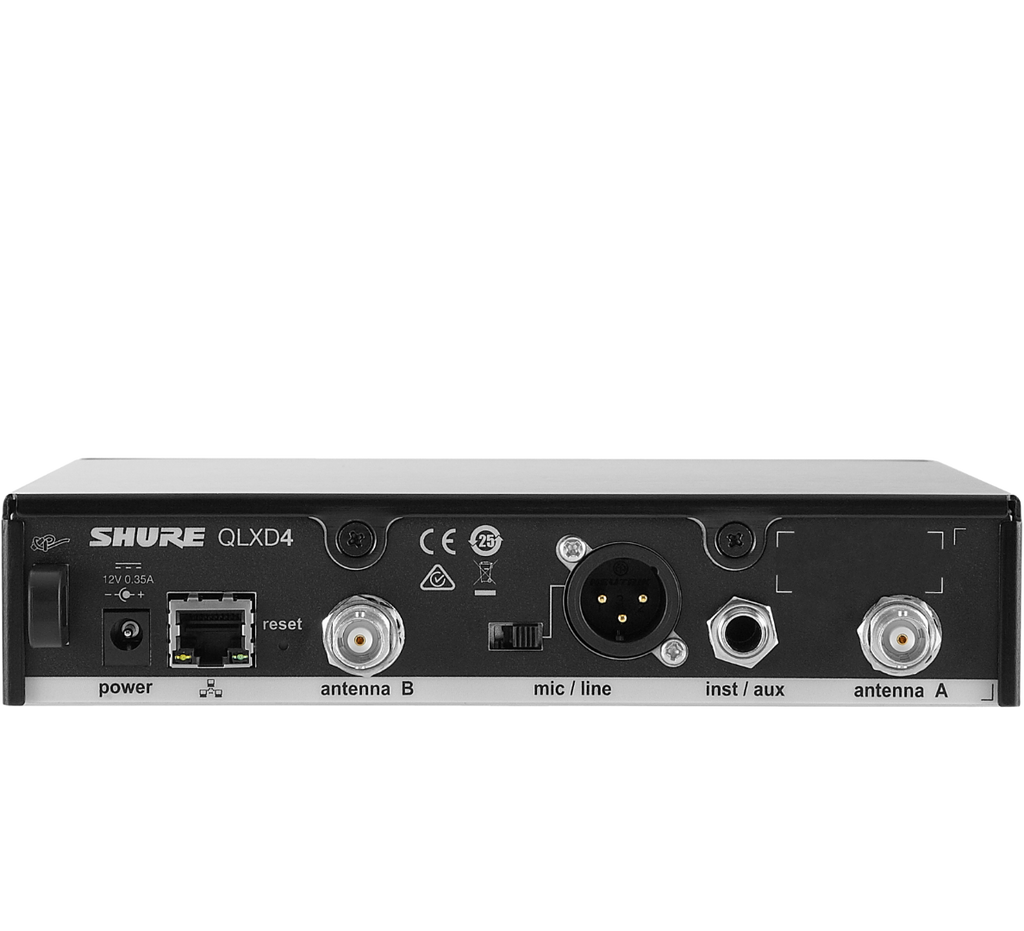

QLXD4-G51 Receiver Shure (470-534MHz, BE)

QLXD4 receiver for QLXD digital system (UHF transmission).

QLX-D® Digital Wireless delivers defined, streamlined performance with transparent 24-bit digital audio. Combining professional features with simplified installation and operation, the QLX-D provides outstanding wireless functionality for demanding live sound events and installations.

Shure's digital wireless technology allows the QLX-D to transmit clearly detailed audio with an extended, nearly flat frequency response. Designed to be highly efficient with the RF spectrum, the QLX-D can operate more than 60 compatible channels simultaneously in one frequency band. Automatic channel scan and IR synchronization make finding and assigning an open frequency fast and easy. An Ethernet connection provides network channel scanning for multiple receivers and compatibility with Shure Wireless Workbench® control software for advanced frequency coordination. AES-256 encryption comes standard and can be easily enabled for secure wireless transmission.

QLX-D also adds rechargeable Shure power options for significant long-term cost savings and longer transmitter battery life compared to alkaline batteries, and battery meters that indicate remaining usage time in hours and minutes. With clearly defined performance and innovation, QLX-D delivers the very latest in Shure digital wireless technology.

Features

• Transparent 24-bit digital audio
• Extended frequency range from 20 Hz to 20 kHz (depending on microphone)
• 120 dB dynamic range
• Digital predictive switching diversity
• 64 MHz tuning bandwidth (depending on region)
• More than 60 available channels per frequency band (depending on region)
• Up to 17 compatible systems per 6 MHz TV band; 22 systems per 8 MHz band
• Easy pairing of transmitters and receivers via IR scan and synchronization
• Automatic channel scan
• Ethernet network for multiple receiver systems
• Network channel scan configures open frequencies for networked receivers
• Compatible with Shure Wireless Workbench 6 control software
• Remote control from a mobile device or tablet via ShurePlus™ Channels app
• AES-256 encryption for secure wireless transmission
• Elegant and user-friendly interface with high-contrast LCD menu
• Compatible with external control systems such as AMX or Crestron
• Professional all-metal construction
