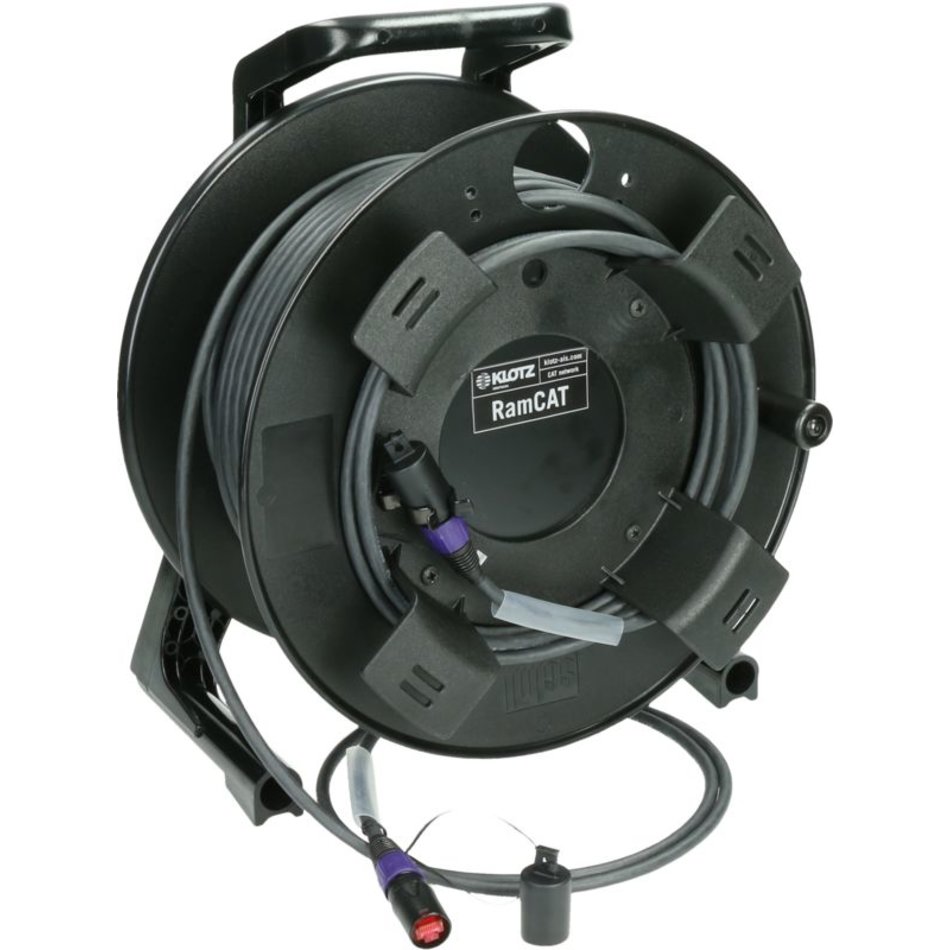

CAT5E KABELHASPEL RamCat KABEL 75M KLOTZ

Perfect match for digital mixing desks with digital snakes

Double shielded data cable RamCAT with solid conductors, PE-X element and PUR outer jacket. The suitability for mobile use is reached by the special construction with a cross-shaped twisting element and durable PUR outer jacket. The conductor isolation of foam-Skin PE allows the assembly with the etherCON connectors.

Features

• RCBEEW flexible, double shielded RamCAT network cable drum system with AWG24 solid conductor and etherCON connectors
• SF/UTP (overall foil + braid shield)
• robust PUR jacket
• 75 meter

Compatibility

• EtherSoun tested by Digigram up to 120 m
• MADI tested by Soundcraft / Studer up to 120 m including two breakout panels and safety margin
• GLD and iLive ACE/dSnake tested by Allen&Heath up to 120 m
• Dante tested by YAMAHA UK up to 120 m, recommended up to 100 m - incl. extended error safety margin at 1 Gbit/s

Specifications

• Cable typ: RC5SB - 4x 2x 0.52 mm (AWG 24/1) solid bare copper, PUR jacket, Ø 6.6 mm
• Outer jacket: PUR
• Max. data transmission rate: 100 MHz
• pinout: TIA / EIA 568-B
• cable drum: GT310
• connector 1: etherCON M
• connector 2: etherCON M
