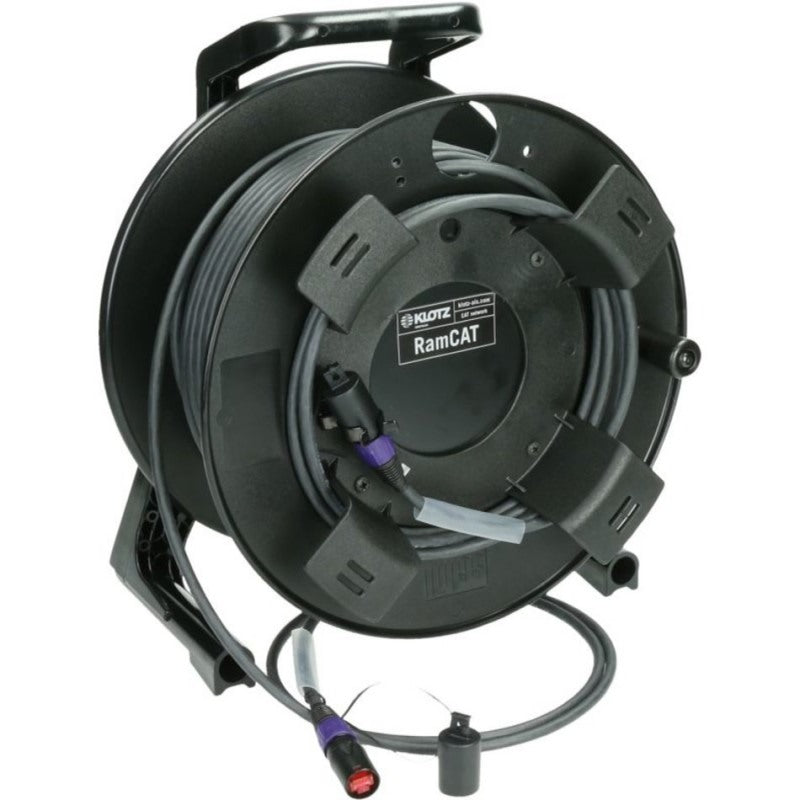

RCBEEW100 RamCat KLOTZ Network cable (100m)

Perfect for digital mixing consoles with digital snakes

Double-shielded RamCAT data cable with solid conductors, PE-X element and PUR outer jacket. Suitability for mobile use is achieved by the special construction with a cross-shaped rotating element and durable PUR outer jacket. The conductor insulation made of foam-Skin PE allows mounting with etherCON connectors.

Specifications

• EtherSoun tested by Digigram up to 120 m
• MADI tested by Soundcraft / Studer up to 120 m including two breakout panels and safety margin
• GLD and iLive ACE/dSnake tested by Allen&Heath up to 120 m
• Dante tested by YAMAHA UK up to 120 m, recommended up to 100 m - incl. extended error safety margin at 1 Gbit/s
• Cable typ: RC5SB - 4x 2x 0.52 mm (AWG 24/1) solid bare copper, PUR jacket, Ø 6.6 mm.
• Outer jacket: PUR
• Max. data transmission rate: 100 MHz
• pinout: TIA / EIA 568-B
• cable drum: GT310
• connector 1: etherCON M
• connector 2: etherCON m
