Rico-V8 Mk2 Briteq  8-channel Chain Hoist Controller

8 channel direct control chain hoist motor controller with separate UP/DOWN-controls and master/slave linking

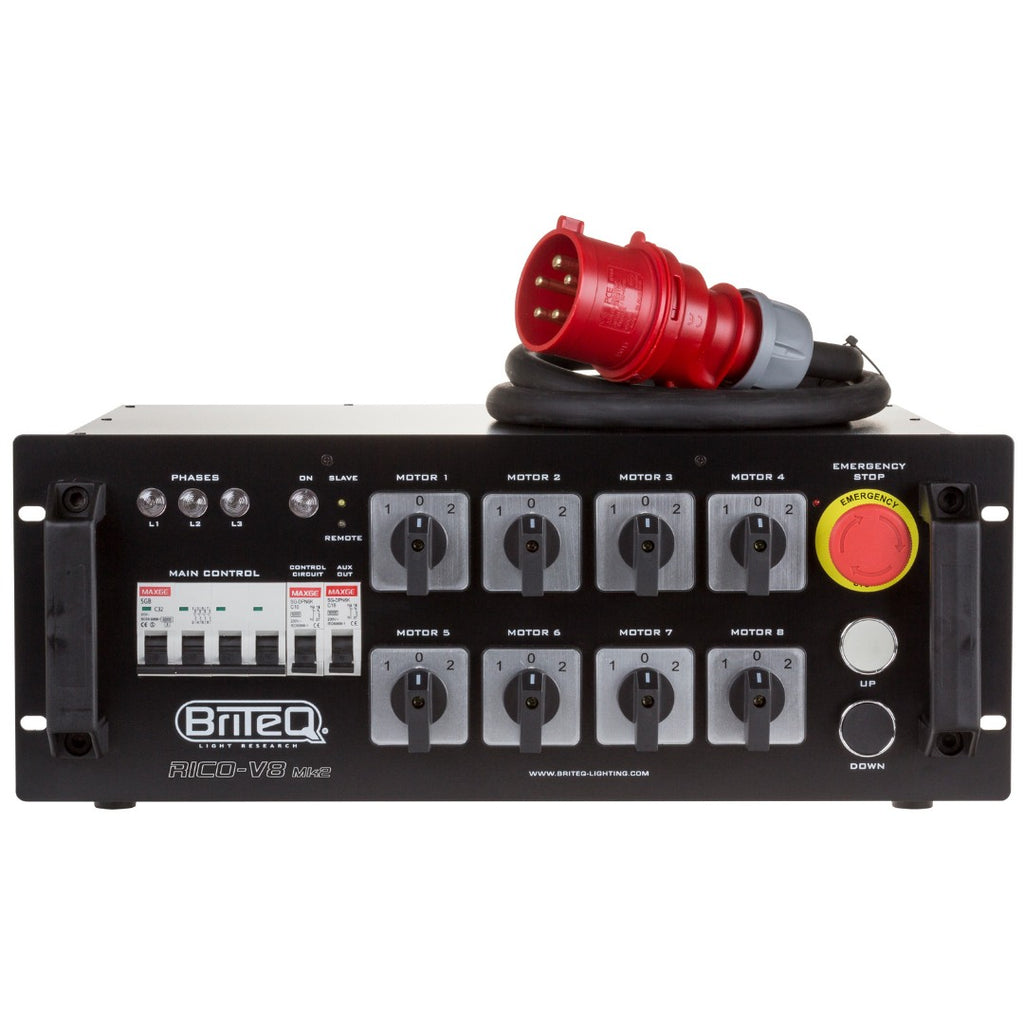

• Standalone manual chain hoist motor controller for up to 8 separate motors.
• Double safety by using an additional relay backup system that activates in critical situations.
• Fully compatible with the previous RICO-V4 / RICO-V8 models!
• Several units can be linked in master/slave using the link in/out on the back panel:
• Easy control for a larger number of chain hoists
• Simultaneous hoist control using the UP/DOWN buttons on the master controller
• Centralized Emergency stop on the master controller
• “Slave” indicator led
• Manual phase inversion switch for each output.

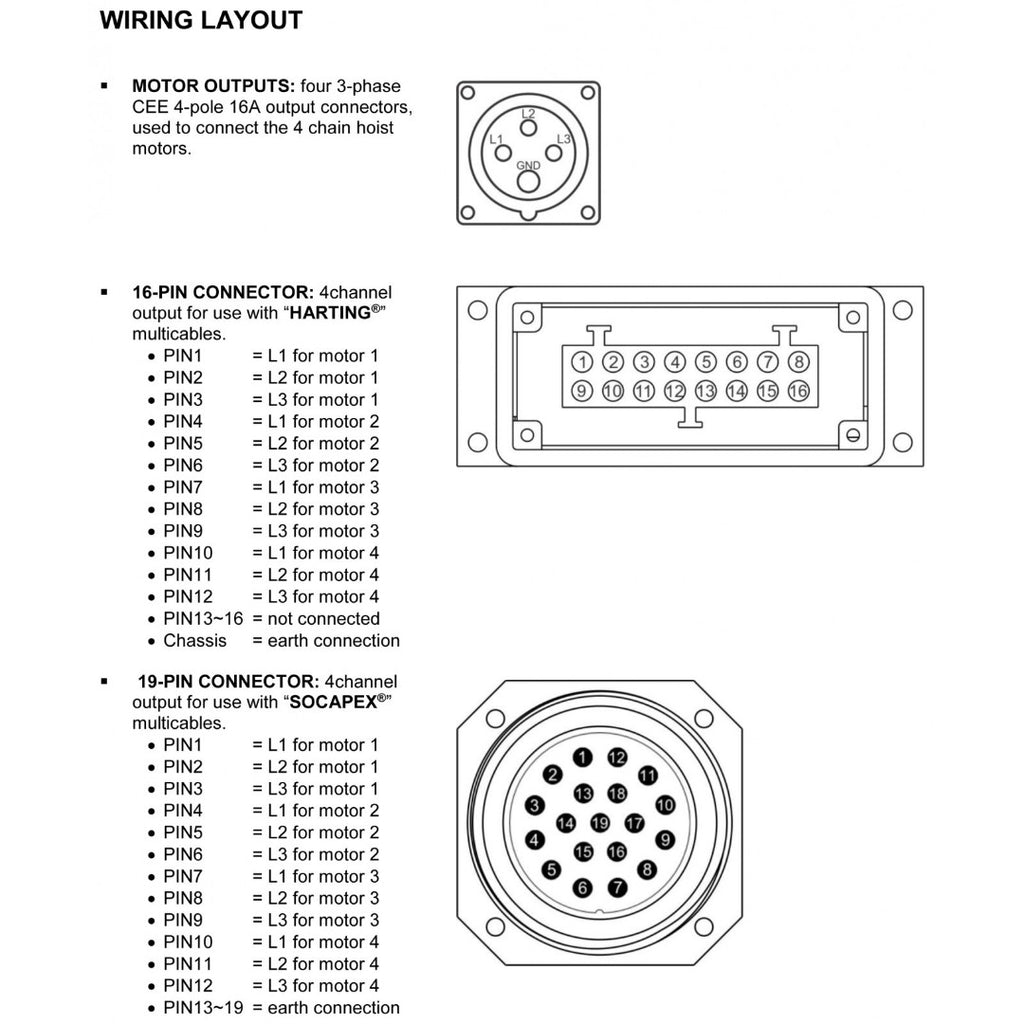

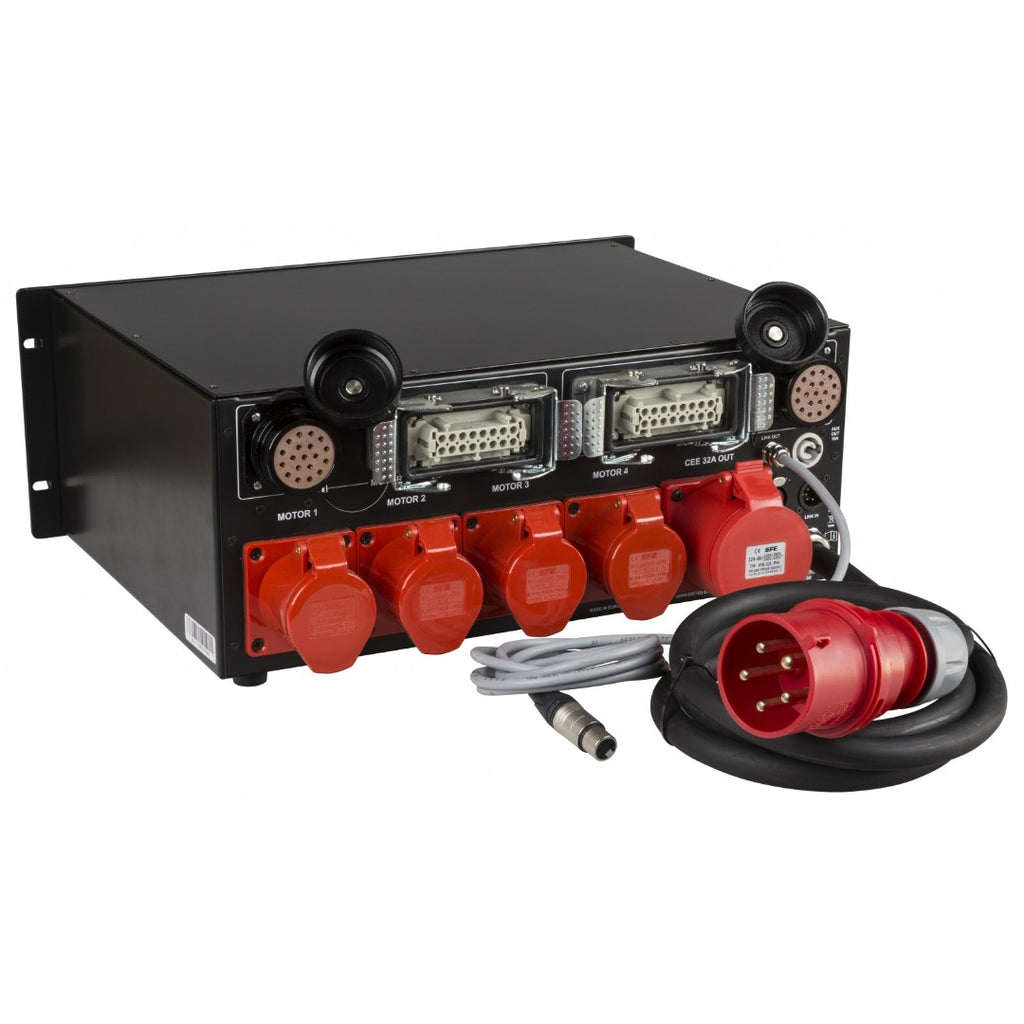

• Choice of different outputs for maximum flexibility (rental companies!):
• 4x individual CEE16 4pole 16A outputs
• 2x 16PIN multichannel industrial rectangular connector, Harting® compatible
• 2x 19PIN multichannel industrial round connector, Socapex® compatible
• 1x earthed 16A PowerCON mains outlet: auxiliary output for all kinds of use
• Remote control input (XLR) with led indicator to connect the optional RICO-REMOTE.
• Phase indicators to easily check if the 3phases are available.
• 32A 4pole circuit breaker protects ALL outputs, including the 32A output to the next unit. In case of emergency all 3 phases AND the neutral are disconnected.
• C16 (16A - 1P+N) 2-POLE automatic circuit breaker for control circuit.
• Auxiliary output protected by a 16A RCBO with 30mA leakage current protection.
• Mains input cable (3x 32A, 5wire), equipped with CEE (3P+N+E) 32A inlet plug.
• CEE (3P+N+E) outlet socket (3x 32A, 5wire) for bypass.
• Extremely robust 19"/4U metal housing.
• Designed and build in Europe to the highest international safety standards!
• Fully complies to EU directives: 2014/35/EU (LVD) and 2014/30/EU (EMC):
• EN 60204-32:2008 (safety of machinery - Part 32: requirements for hoisting machines)
• EN 60204-1:2018 (safety of machinery - Part 1: General requirements)
• EN IEC 61000-6-2:2019 (EMC - Immunity standard for industrial environments)
• EN IEC 61000-6-4:2019 (EMC - Emission standard for industrial environments)
