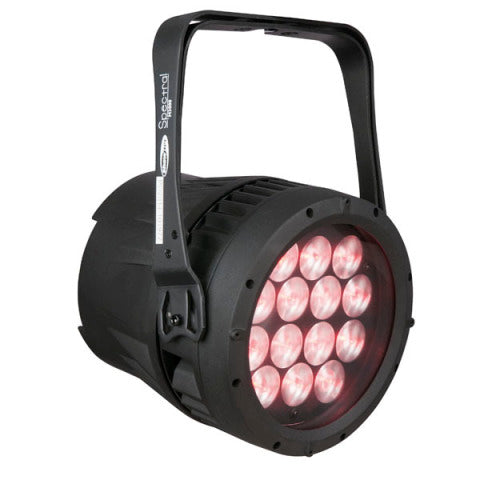

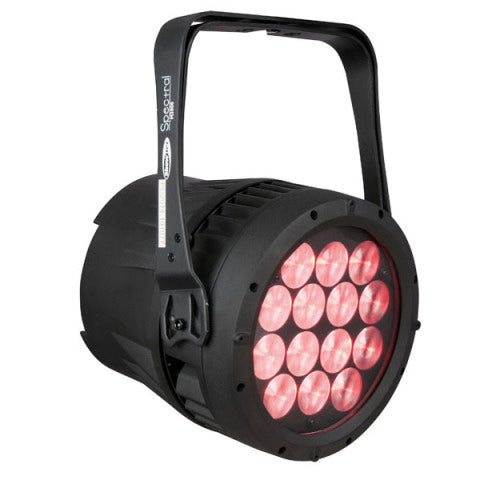

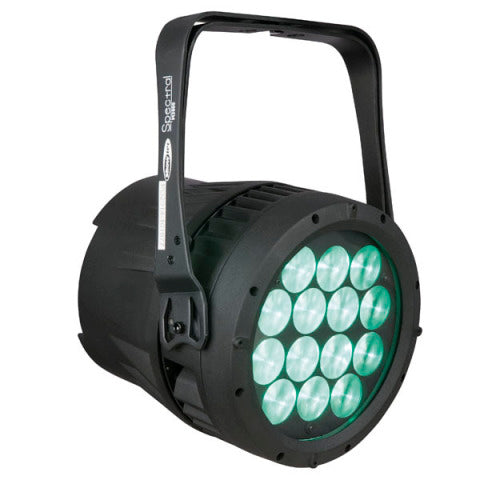

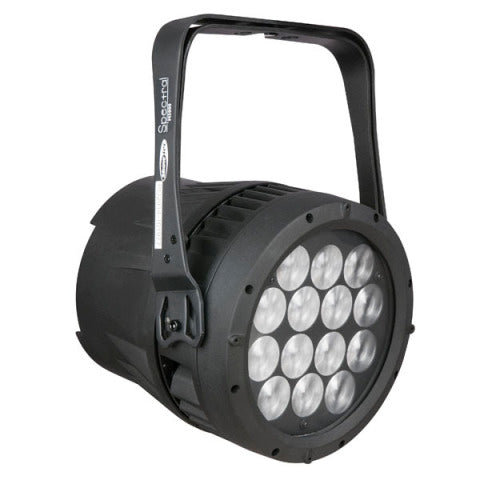

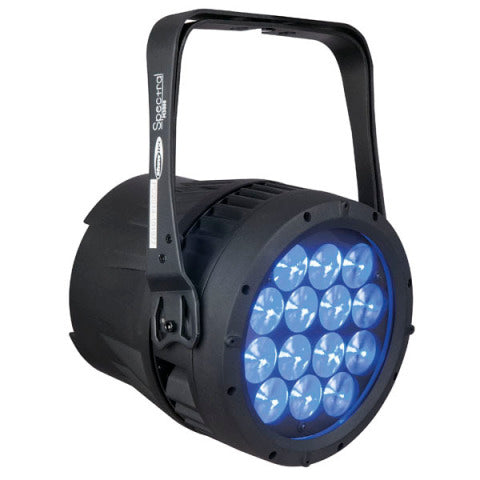

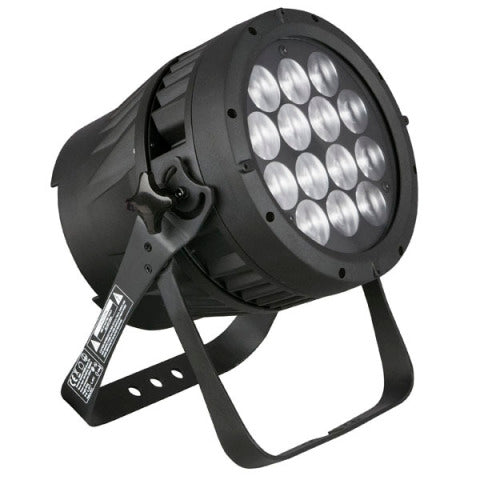

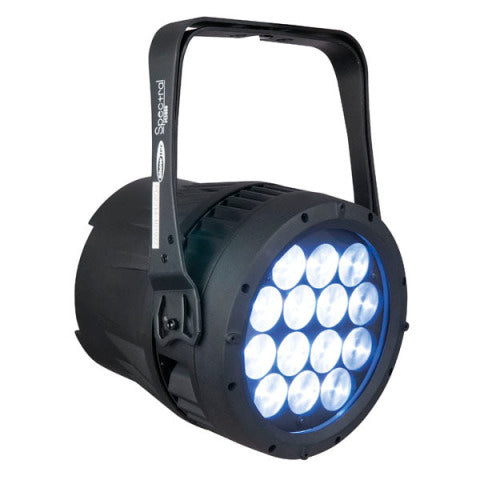

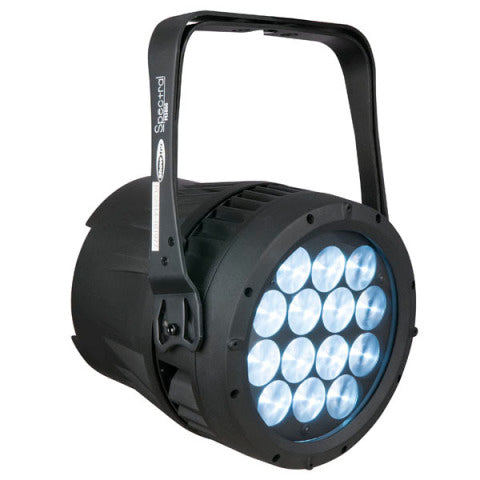

Showtec Spectral M3000 Zoom Q4 MKII IP66

The Spectral M3000 Zoom Q4 MKII is the succesor of the M3000. The Tour and IP version are combined in one fixture. Also the LED source is upgraded to the Osram brand. This makes this upgrade a truly versatile unit. It has an extremely impressive zoom range of 8-40 degrees. Ideal for a wide range of applications the Spectral M3000 Zoom Q4 MKII can be used from productions to theatre, and from event to architectural facade lighting. The Spectral M3000 Zoom Q4 MKII offers true 4-in-1 RGBW LED technology by Osram ensuring a wide palette of vivid colors and true white. The sturdy die cast aluminium body makes it a suitable LED fixture for indoor and outdoor applications. With this fixture, lighting designers have the ideal tool for creating dramatic beams of light carrying out wide panoramic washing.

Features

• Electronic Zoom: 8-40°

• RGBW 4-in-1 Osram source

• Convection cooling

• IP65

• 3900+ lumen

Specifications

Output

• Lumen: 3900+

• Lux@2m, 8°: 63700+

• LED Quantity: 14x 4-in-1 RGBW

• Driver current: 700mA

• Refreshrate: 900Hz

• Dimmer: 0-100%

• Strobe: 0-20Hz

• Beam Angle: 8-40°

Control

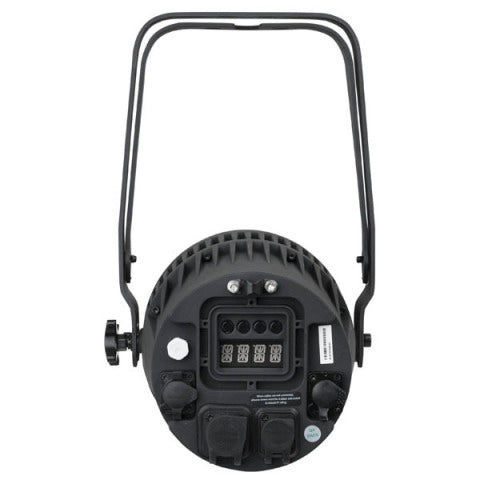

• On Board: 4 segment display

• Mode: Static, Auto, Run, DMX, Personality, Edit, Set, Key, Cal, WT, RGBW, Zoom

• DMX personality: 3, 4, 5, 6, 7, 12, 17 Channel

Electrical

• Input Voltage: 100~240VAC...50/60Hz

• Power consumption: 195W max @FO

Physical

• Dimensions (LxWxH): 280x300x315 mm

• Weight: 8.4 Kg

• IP Rating: IP-65

• Housing: Die cast Aluminium, powder coat finish

• Lens Plate: Tempered glass

• Connections: IP65 3-pole XLR connectors, IP-65 Power connector

• Cooling: Convection
