Showtec Spectral PC 400Z

The Spectral PC 400Z is a compact LED Parcan with an impressive zoom from 3.5° to 18°. It can be used both as an compact wash light fixture as well as powerful pin spot. The IP-rated housing allows you to use the fixture both indoor and outdoor. Equipped with a 45W Osram Ostar RGBW LED it creates rich and vivid colours in a wide spectrum.

Features

• Compact size

• 45W RGBW Colorizing

• Zoom 3.5° to 18

• IP65 Rated

Specifications

• Lightsource: Osram LED (RGBW) 45W,

• Drive current: 2.5A

• Beam Angle: 3,5° to 18°

• Field Angle: 5° to 25°

• Input voltage: 90-240VAC, 50/60Hz

• Power: 45 W

• Output (3,5°): 56000 Lux @ 1 meter

• Output (18°): 4160 lux @ 2 meter

• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25000 Hz.

• Dimmer: 0-100%

• Strobe: 0-25Hz

• Control protocol: DMX-512

• Control personality: HSiC, SSP, TOUR, TR16, STD.Y)

• DMX Channels: 9, 12 or 17

• Dimensions: 215 x 186 x 135mm

• Weight: 3.6Kg

• Housing: Die cast aluminium

• Colour: Black

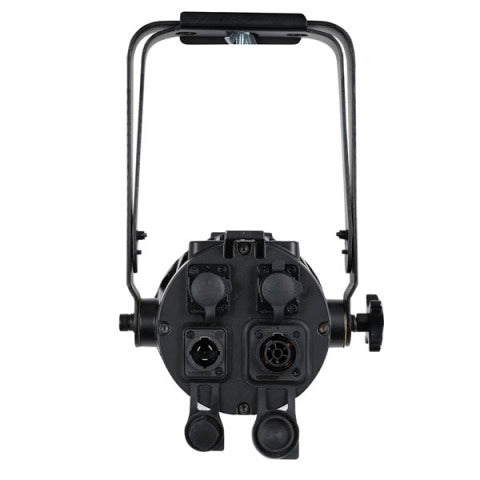

• Fixture connection: IP65 3-pole XLR connectors, IP-65 Power connector

• Cooling: Convection

• Operating temperature: -20°C - 45°C
