SPL-D2 MKII DATEQ -  SPL Meter + Display and measurment micorphone

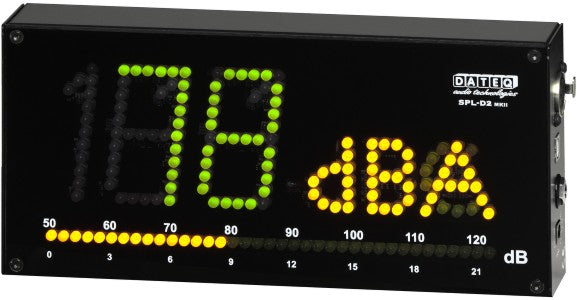

The SPL-D2 is a sound-level display unit. This unit can be used as a stand-alone device, or it can be connected to the SPL5 limiter. The display is built-up with hi-efficiency bi-color LEDs, so that it is clearly readable from a distance.

When connected to the SPL5 the display value is read from the SPL5 limiter. The bar can be used as a soundlevel indication bar, or as an attenuation bar.

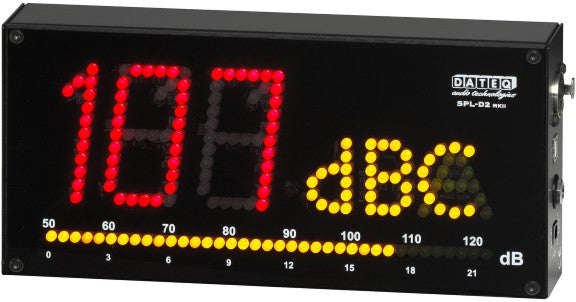

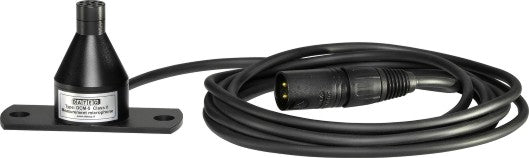

When used as a stand-alone unit the measuring microphone must be connected. The display shows the actual measured value. When the value crosses the pre-defined level the display color switches from green to red. This can be used as an indication for a live-band. When using a measuring microphone three measuring curves can be selected:

• ANSI-A
• ANSI-B
• ANSI-C

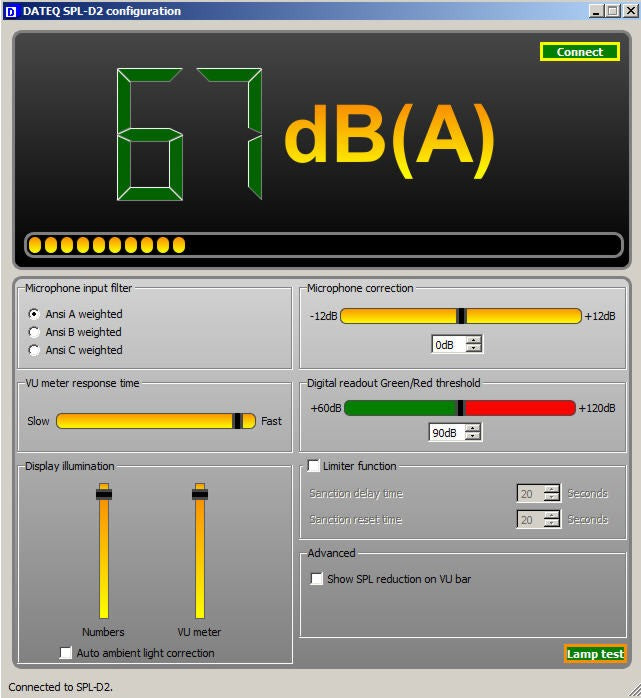

These settings can be changeg using the SPL-D2 configuration software.

Features

SPL-D2:

• Large, clearly readable digits
• Can be used standalone, or as an extension of the SPL5
• Display is automatically dimmed in a dark environment
• Display-color changes when the threshold is passed
• Can be linked to the SRL-1 to act as circuitbreaker

Software:

• Compatible with Windows 98, ME, 2000, XP, 7
• Display intensity can be adjusted
• Adjustable threshold
• Microphone sensitivity can be adjusted
• Limiter function can be adjusted
