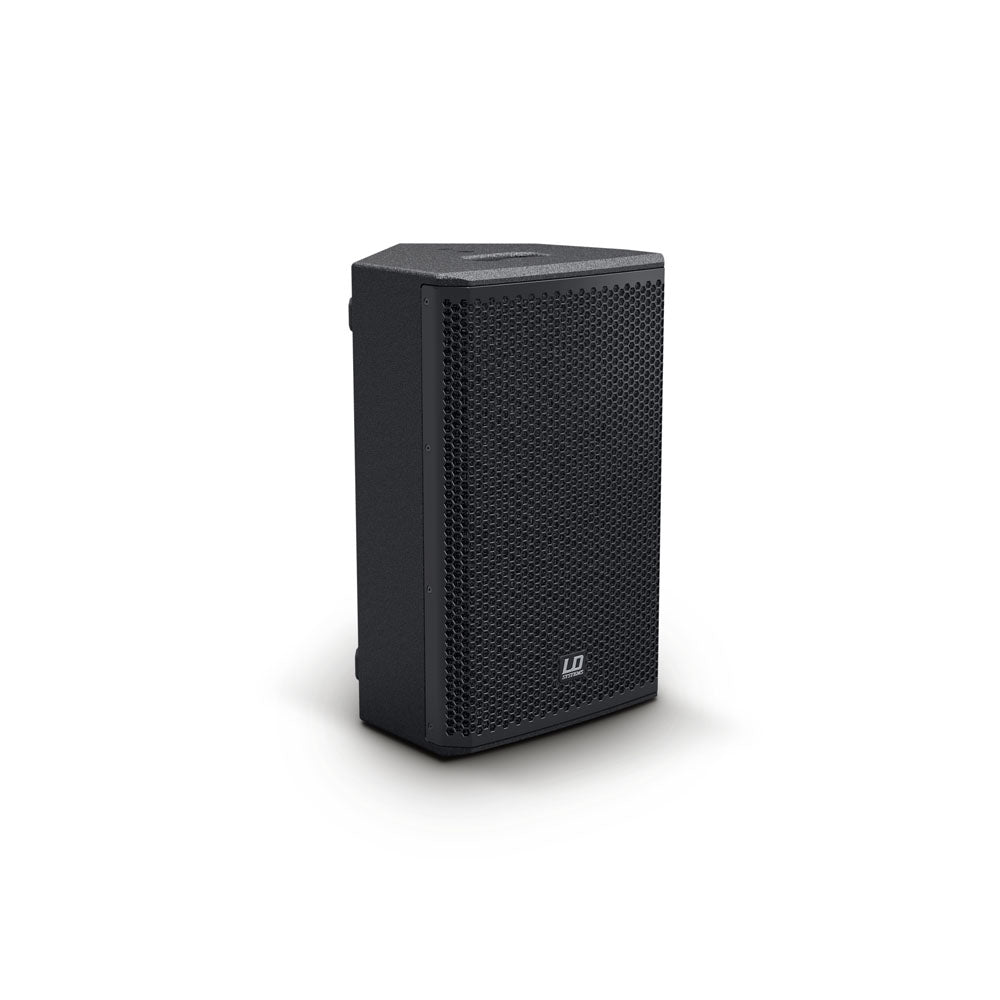

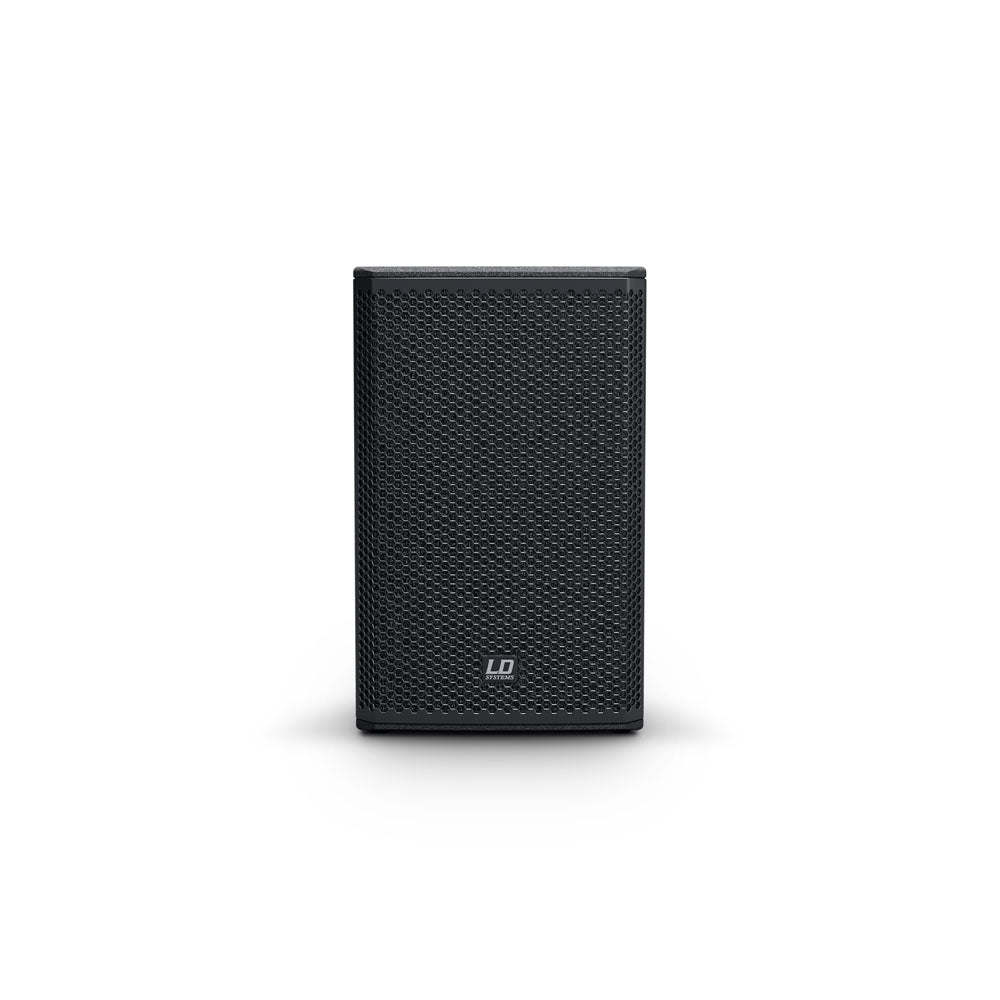

LD Systems STINGER 10 G3

2-Way Passive 10” Bass Reflex PA Speaker

This highly professional 2-way loudspeaker is designed for absolute, long-term reliability. With its multifunctional bass reflex cabinet as a full range speaker, satellite and ground monitor, it is suited to mobile and fixed PA systems. The Stinger® 10 G3 provides 300 watts of continuous power; the maximum sound pressure level is 120 dB. Its specially developed 10" woofer and the BMS HF driver achieve a powerful bass reproduction and fresh natural highs. The wave guide of the tweeter has been developed using the Boundary Element Method (BEM), a numerical simulation of the sound radiation and dispersion. It reduces reflections from the floor and ceiling and prevents sidelobe levels and thus achieves a controlled and homogeneous dispersion. The Stinger® 10 G3 is designed as a real all-round workhorse. The cabinet is made from robust birch plywood and offers exceptional stability and durability thanks to its extremely durable polyurea coating. The features include a steel grille, a Dual-Tilt stand attachment, flight points and ergonomic handles. The Stinger® 10 G3 is an affordable solution for professional PA applications; extensive accessories support the use on stage and in fixed installations.

Features

• 2-way passive 10” bass reflex PA speaker

• 400 watts RMS power handling

• 125 dB maximum SPL

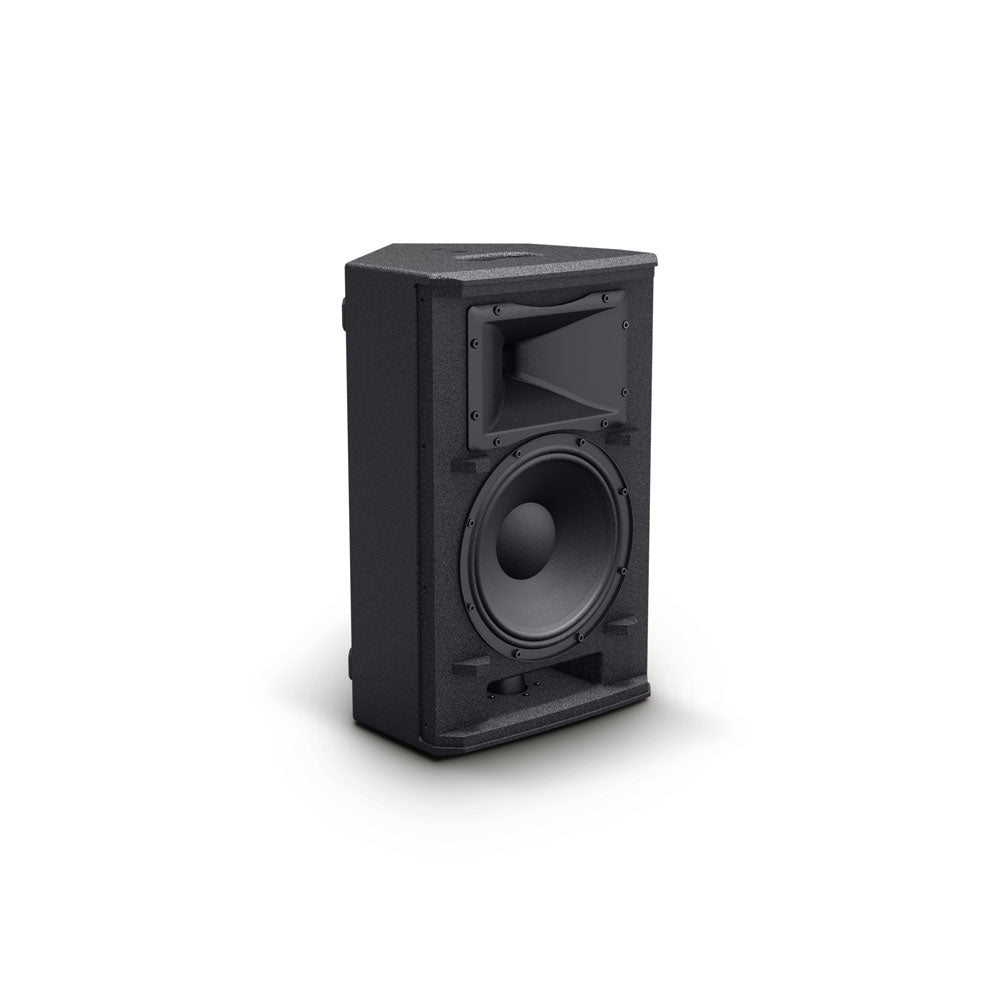

• 12“ custom woofer and BMS compression driver

• BEM optimized HF waveguide for uniform coverage

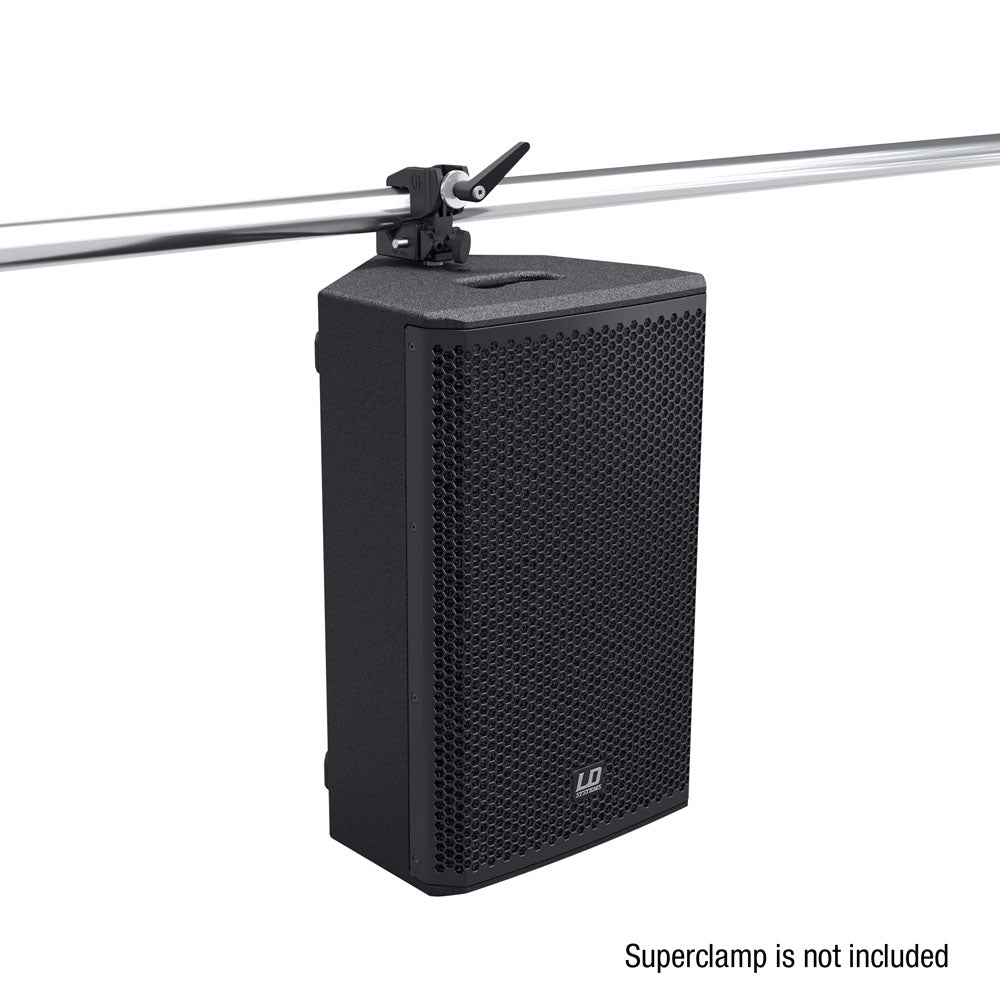

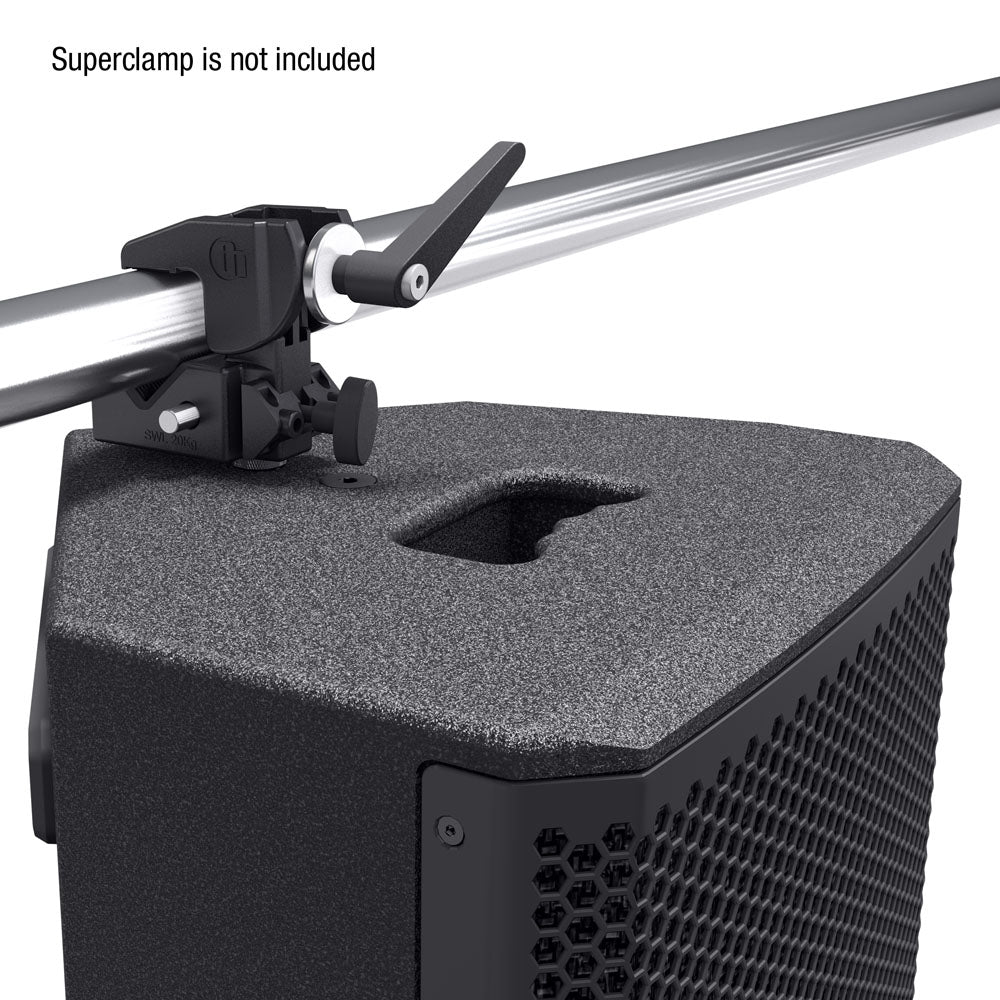

• Birch ply cabinet with ultra rugged polyurea finish and M10 suspension points

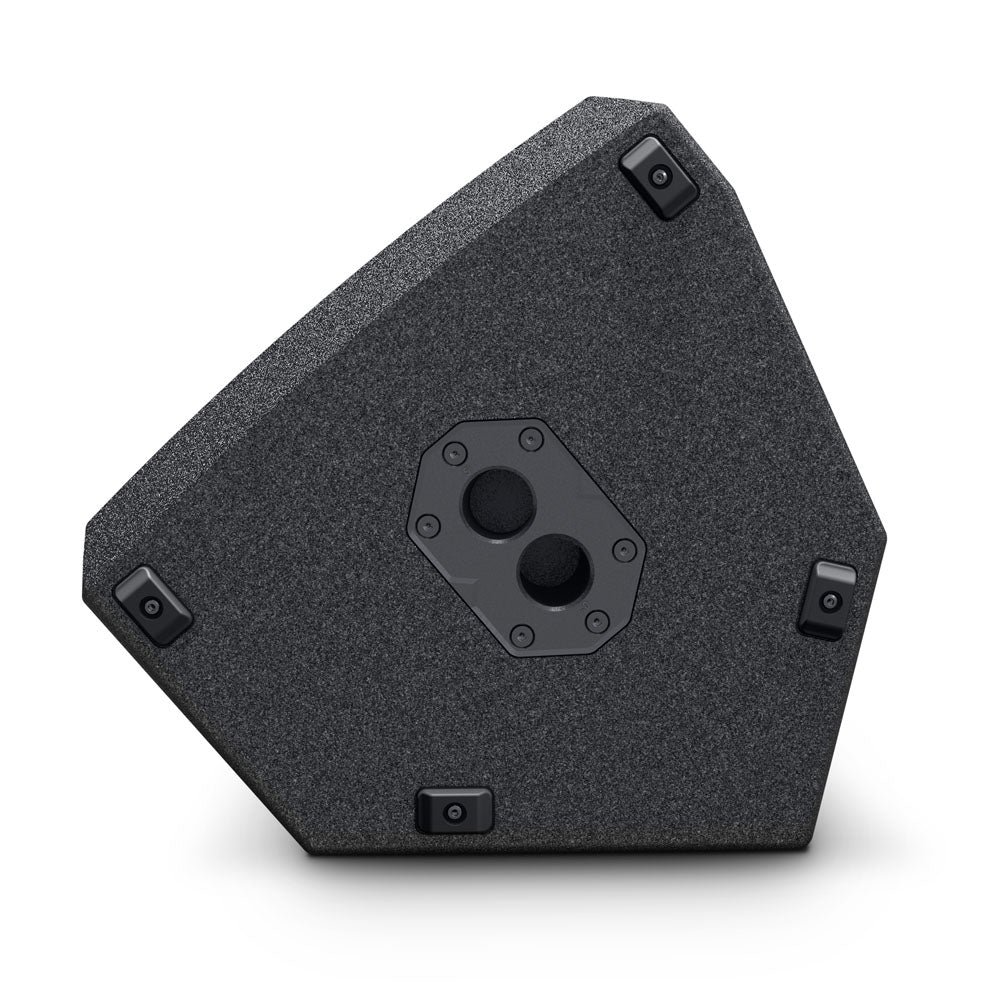

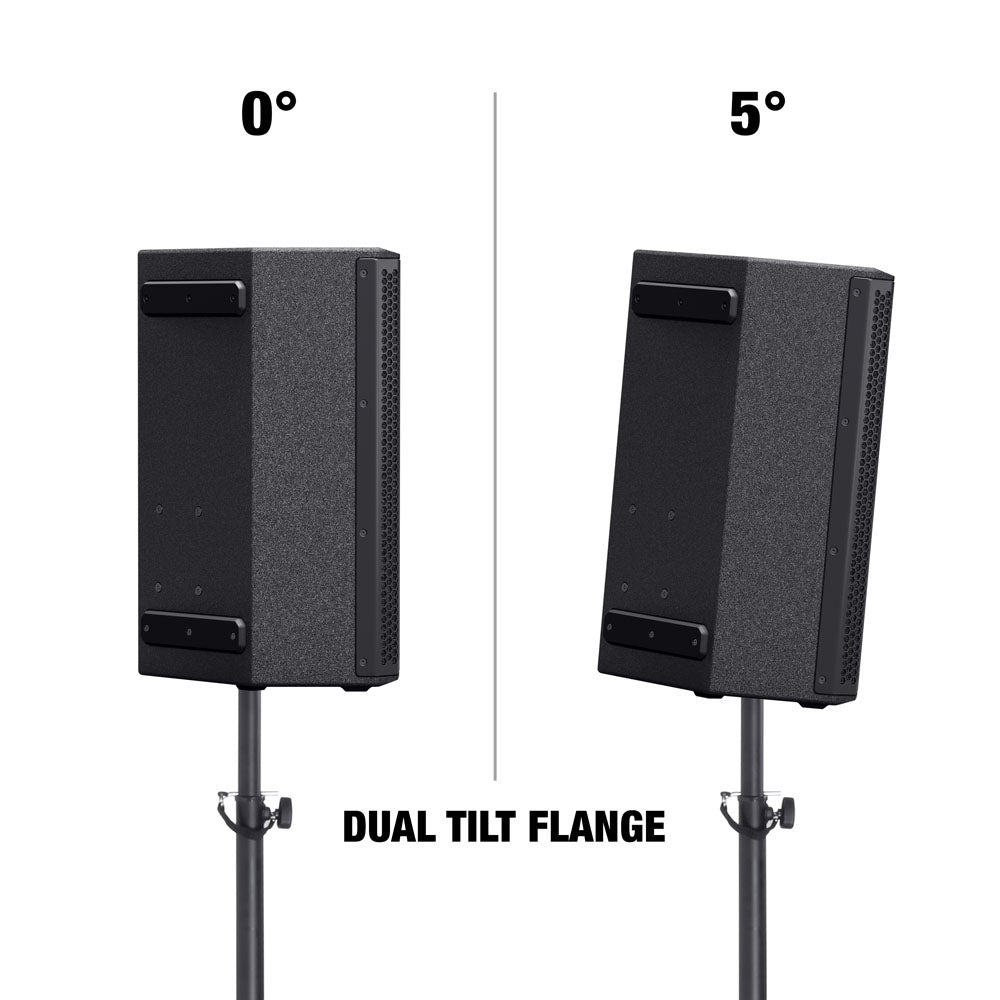

• 36 mm Dual-Tilt pole receptacle for 0° or 5° mounting angles

• Large selection of smart installation and transport accessories

Specifications

• Product type: PA loudspeaker

• Type: passive

• Low/mid driver dimensions: 10 "

• Woofer Size: 254 mm

• Woofer magnet: Ferrite

• Woofer brand: Custom-made

• Woofer voice coil: 2 "

• Woofer voice coil (mm): 50.8 mm

• Horn: BEM optimized CD Horn

• HF driver dimensions: 1 "

• HF Driver Size: 25.4 mm

• HF driver magnet: Ferrite

• HF driver brand: BMS

• HF driver voice coil: 1 "

• HF Driver Voice Coil: 25.4 mm

• Dispersion (H x V): 90 x 50 °

• Load rating (RMS): 300 W

• Peak power: 600 W

• Frequency response: 65 - 20000 Hz

• SPL (1W/1m): 96 dB

• Max.: SPL 121 dB

• Impedance: 8 Ohm(s)

• Protection circuits: HF Driver

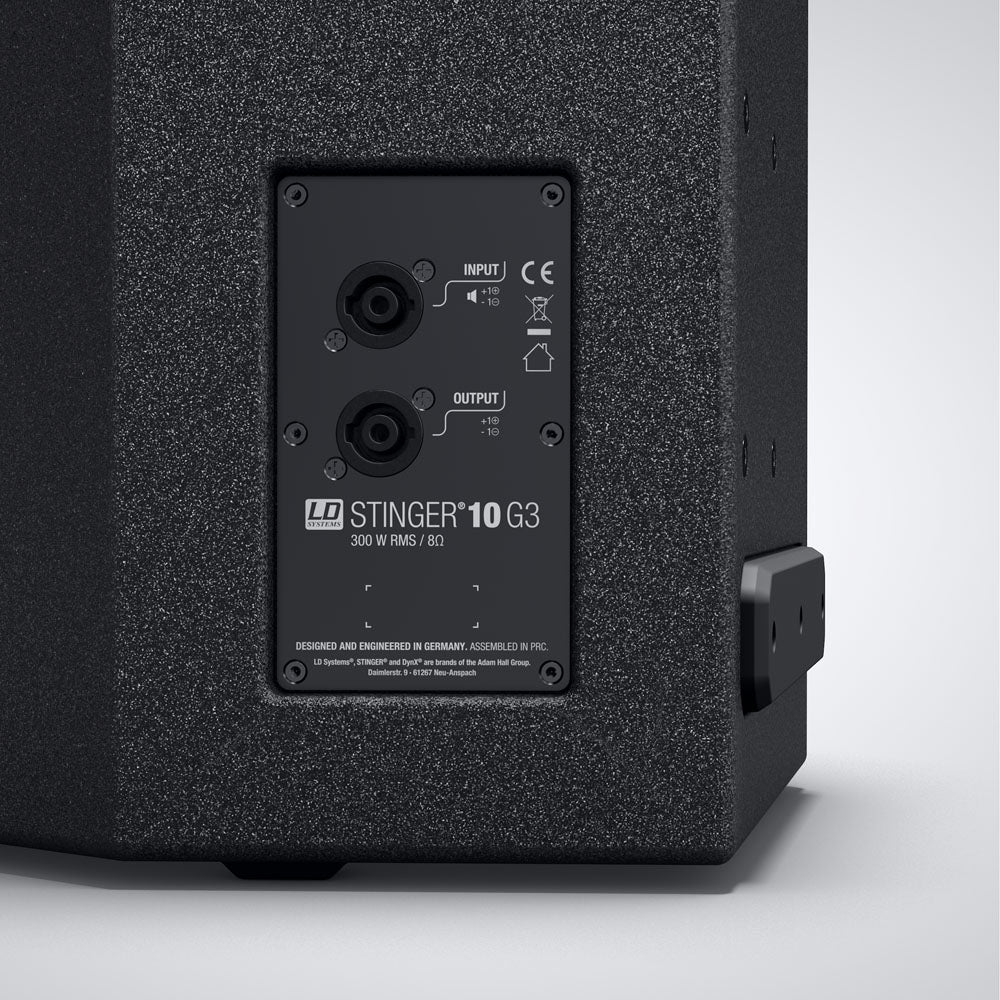

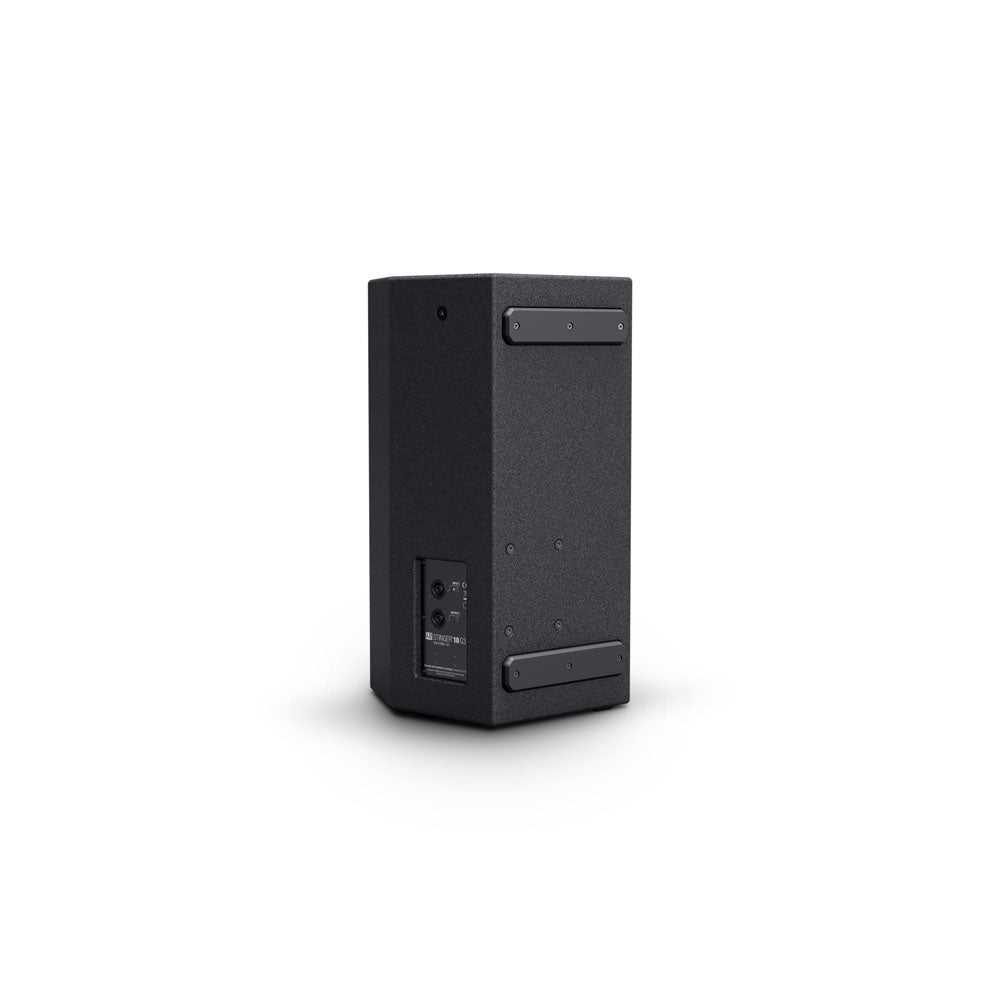

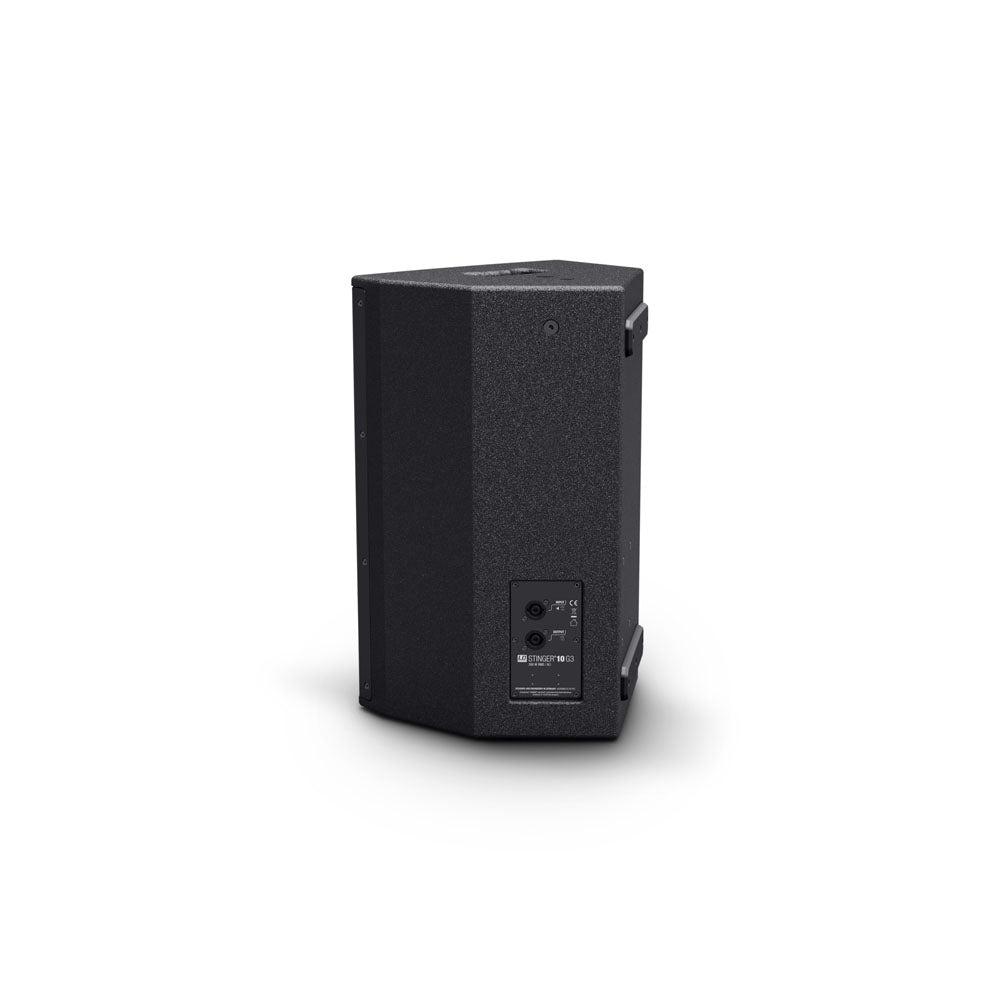

• Loudspeaker inputs: 1

• Speaker input connections: Speakon compatible

• Loudspeaker outputs: 1

• Speaker output connections: Speakon compatible

• Cabinet material: 12 mm Plywood

• Cabinet surface: Polyurea

• Cabinet construction: vented

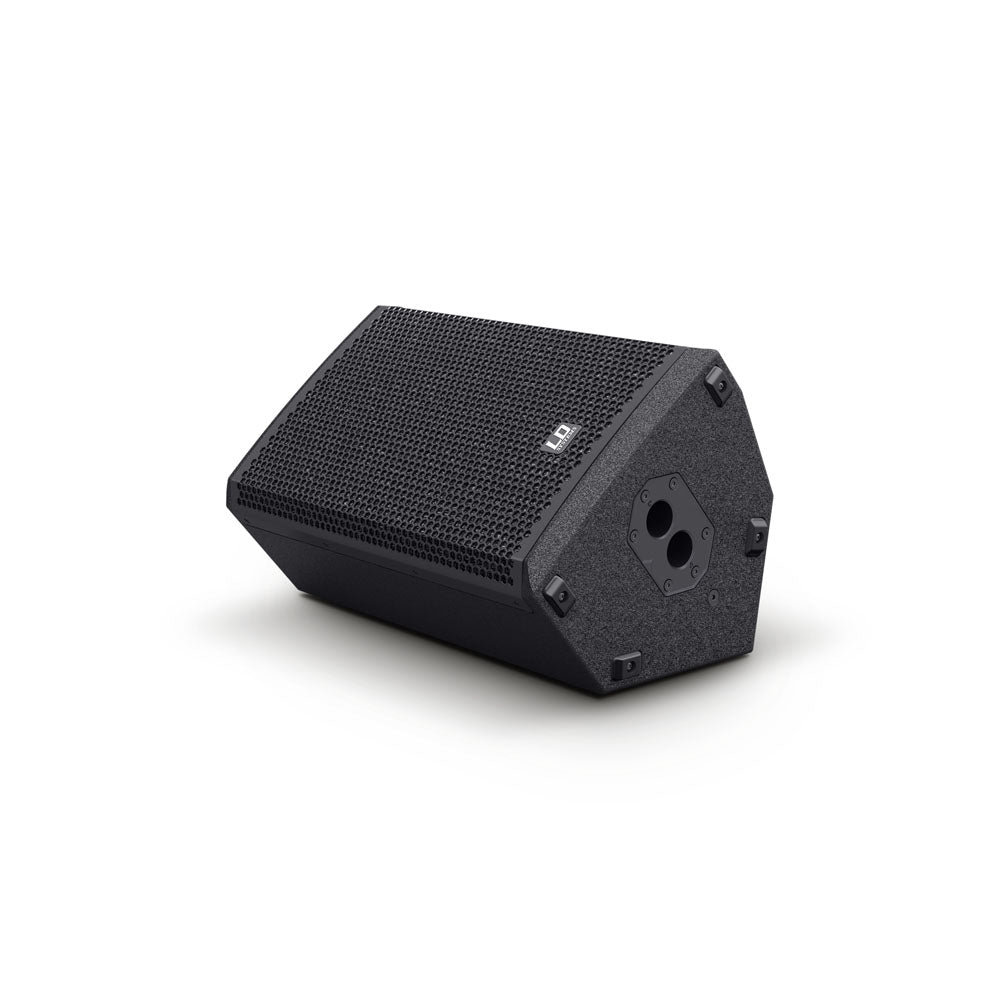

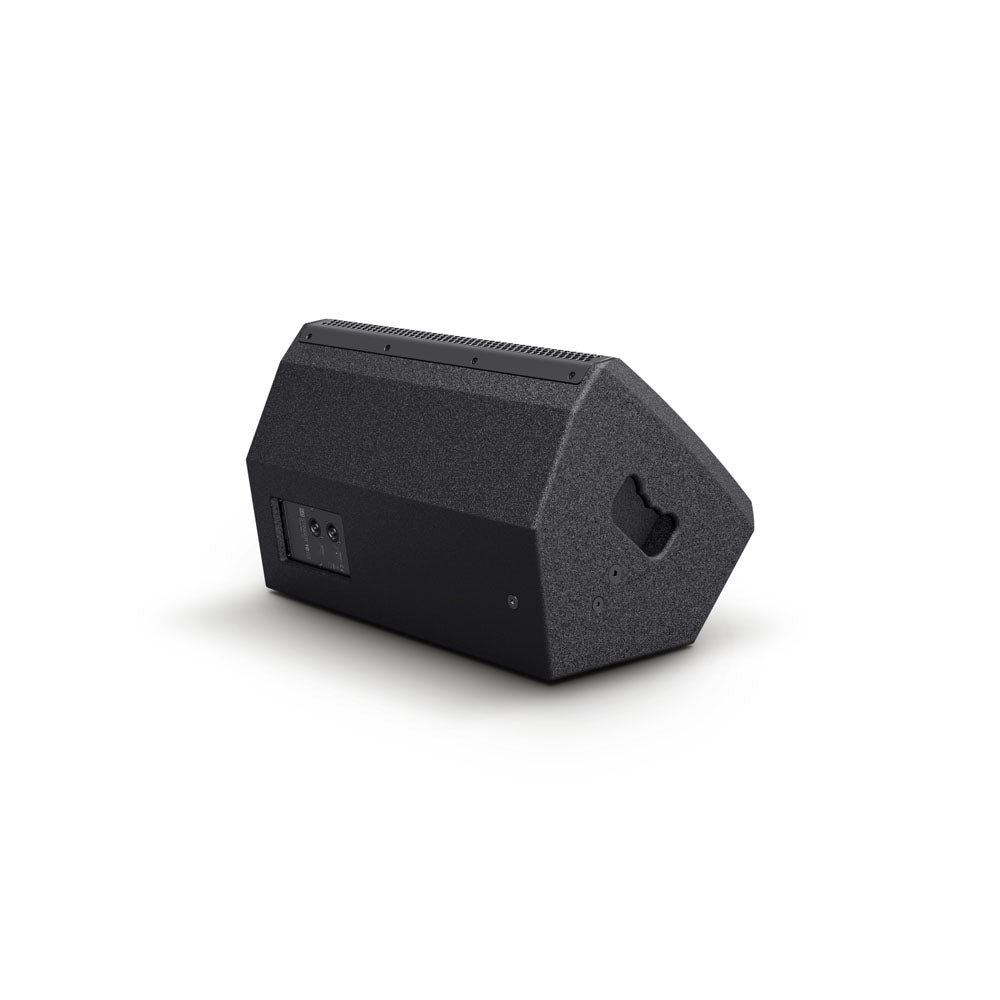

• Monitor angle: 54 °

• Width: 325 mm

• Height: 527 mm

• Depth: 308 mm

• Weight: 11,5 kg
