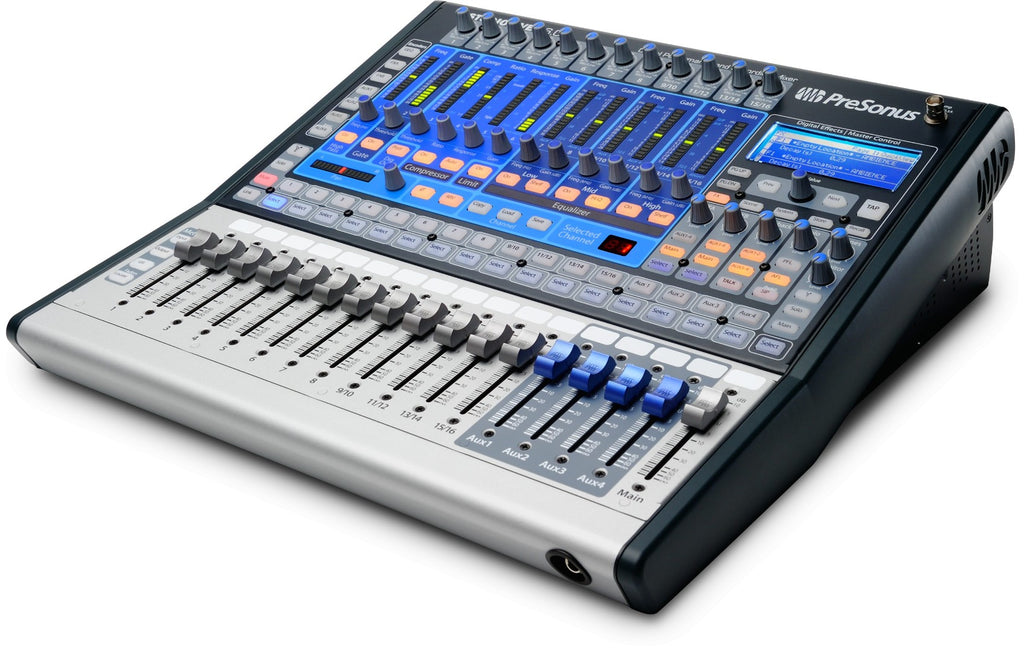

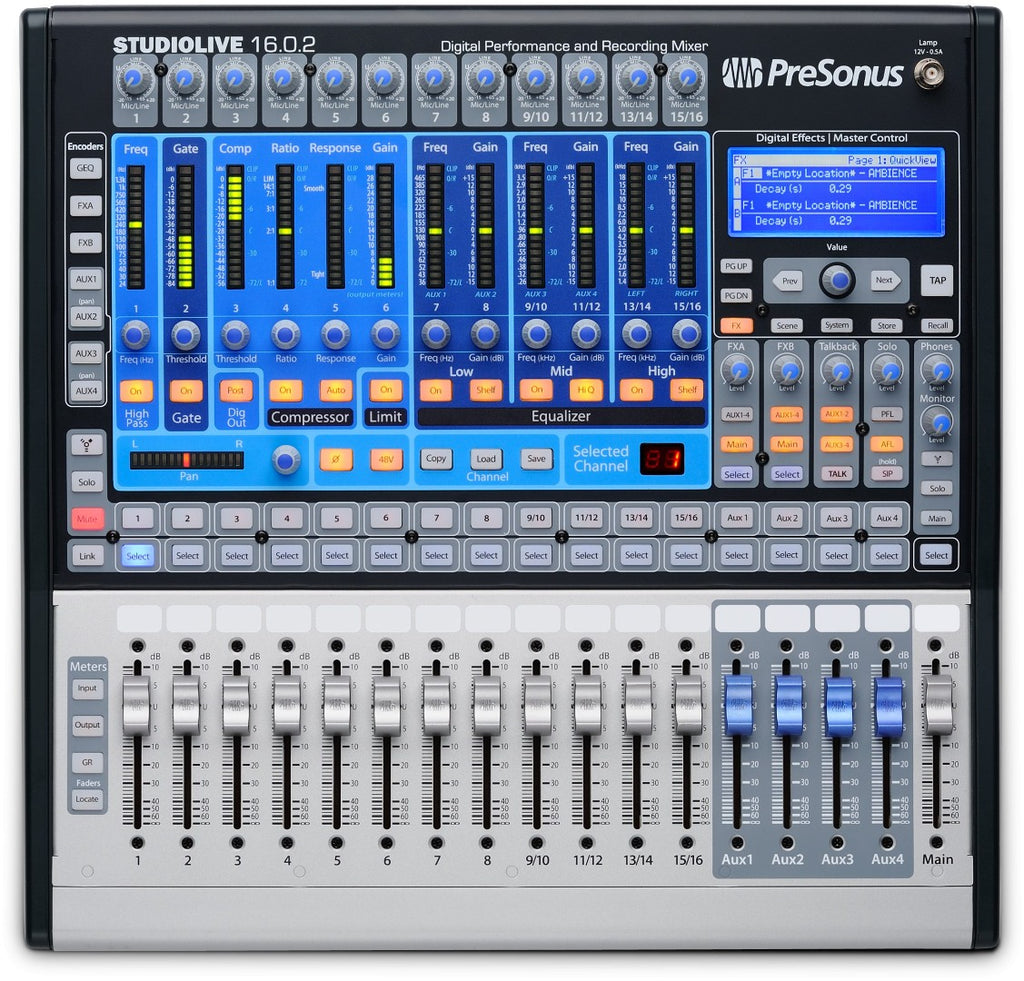

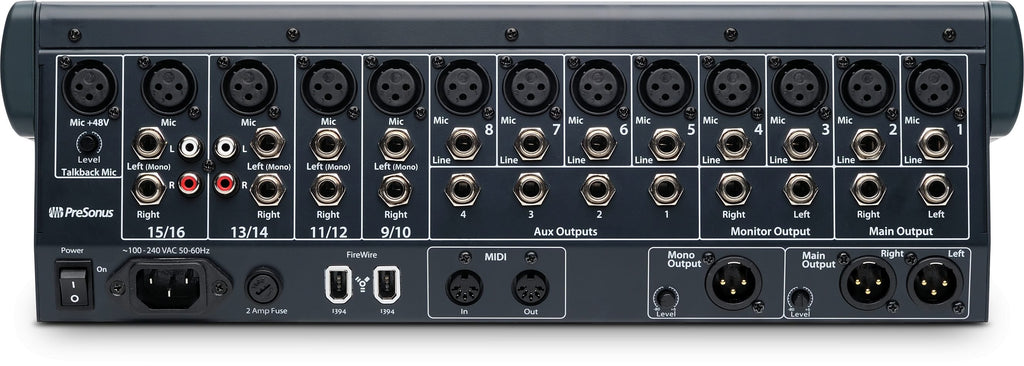

Studiolive 16.0.2 Usb 16-Channel Digital Mixer Presonus

The compact, 16-channel StudioLive® 16.0.2 has less than 0.19 square feet of floor space and offers 8 mono input channels, 4 stereo channels and 4 aux sockets, each with a high-quality 60mm fader. You get generous analog I/O, 12 XMAX Class A solid-state mic preamps, a Talkback input with Class A mic preamp, extensive signal processing with physical controls, MIDI control, precise metering and a built-in multichannel recording interface. Like all StudioLive mixers, the 16.0.2 comes with a suite of tightly integrated recording, control and audio analysis software. And it's so light and compact that you can easily hold it in one hand and tuck it under your arm.

Features

• 8 mono mic/line channel inputs
• High-quality class A XMAX mic preamp
• XLR mic and balanced ¼" line inputs
• 60 mm precision fader
• 4 stereo line channel inputs, with:
• High-headroom Class A XMAX mic preamplifier (Ch. 9, 11, 13, and 15)
• XLR microphone inputs (Ch. 9, 11, 13, and 15)
• Balanced ¼" line inputs (ch. 9-16)
• Unbalanced RCA line inputs (channel 13-16)
• 60 mm precision fader (4 stereo)
• 4 auxiliary buses (pre/post fader send)
• 2 Internal FX sockets
• 2 stereo 32-bit digital effects processors with customizable reverb and delay presets
• Fat Channel signal processing on all channels and buses, with:
• 3-band semi-parametric EQ (individual band on/off)
• Fully equipped compressor
• Standard downward expander
• Limiter
• Phase inversion (12 mic preamps only)
• Pan with dedicated 15-LED display
• Stereo crossover for input channels and aux buses
• High pass filter
• A 31-band graphic stereo EQ (on main outputs only)
• 16-in/16-out FireWire recording interface (24-bit/44.1 kHz and 48 kHz)
• Compatible with most audio software via ASIO, Windows Audio, Core Audio
• Save and recall scene
• Settings can be copied between channels and buses and saved as user presets.
• Software bundle for Mac® and Windows® includes:
• PreSonus Studio One® Artist digital audio workstation
• PreSonus Capture™ live recording software
• PreSonus Universal Control with Virtual StudioLive® software for two-way mixer control
• Free downloadable software from the Apple App Store for wireless remote control, including:
• PreSonus StudioLive Remote for iPad®
• PreSonus QMix® for iPhone® and iPod touch®
• Lock mode protects your settings from intruders and accidents
• MIDI Control Mode provides control over:
• Scene and FX Preset calls
• Main Volume, FXA, and FXB output levels
• Assign/Disassign FXA and FXB to Mains
