TF1 Yamaha 40-channel Digital mixer
Regular price
€2.799,00
Unit price
per
TF1 Yamaha 40-channel Digital Mixer
Yamaha has always made it its mission to stay in touch with the needs of sound engineers worldwide. The result is evident in the success of the recent CL a...
All product information
Op voorraad (1)
Delivery
Available
S2Store Genk (BE)
Available
Combination deal
TF1 + Dante kaart
- 1x TF1 Yamaha 40-channel Digital mixer€2.799,00

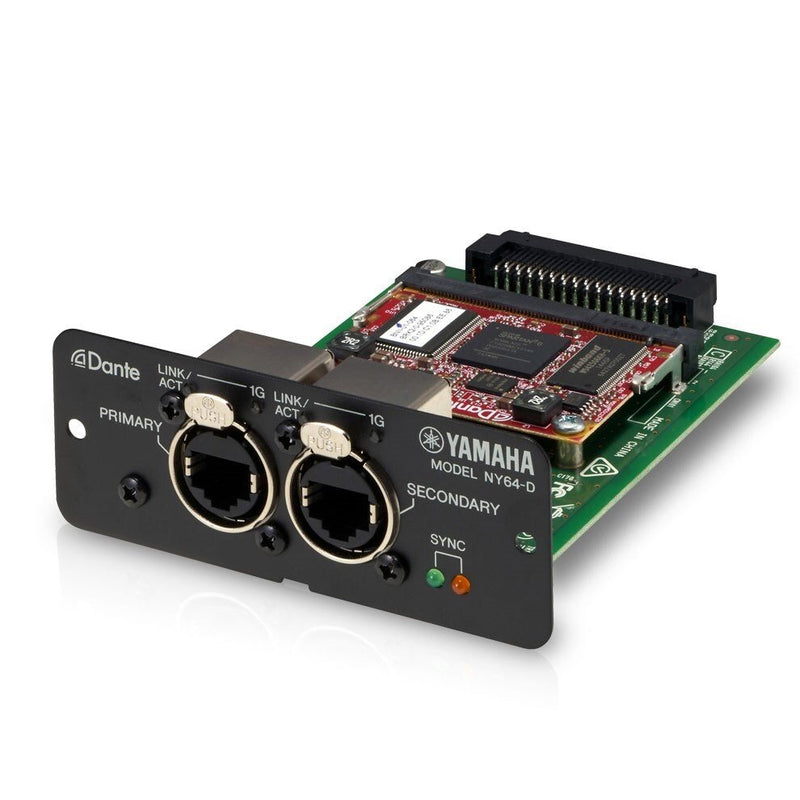

- 1x NY64-D YAMAHA Dante™ interface card for TF-serie€675,00
Total
€3.474,00
Bundle price
€3.424,00
You save
€50,00
Plus- en minpunten
Omschrijving

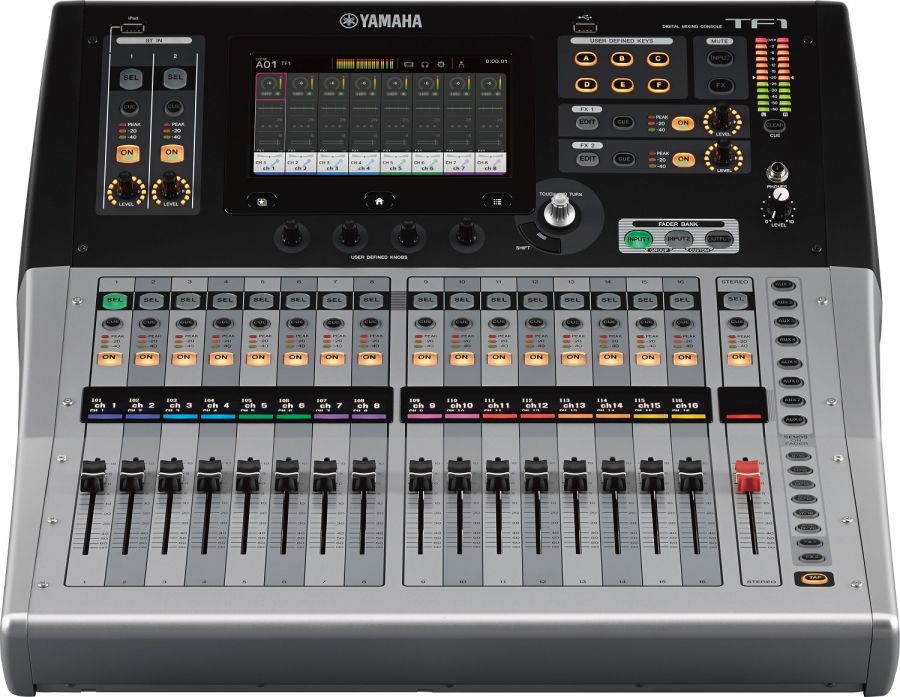

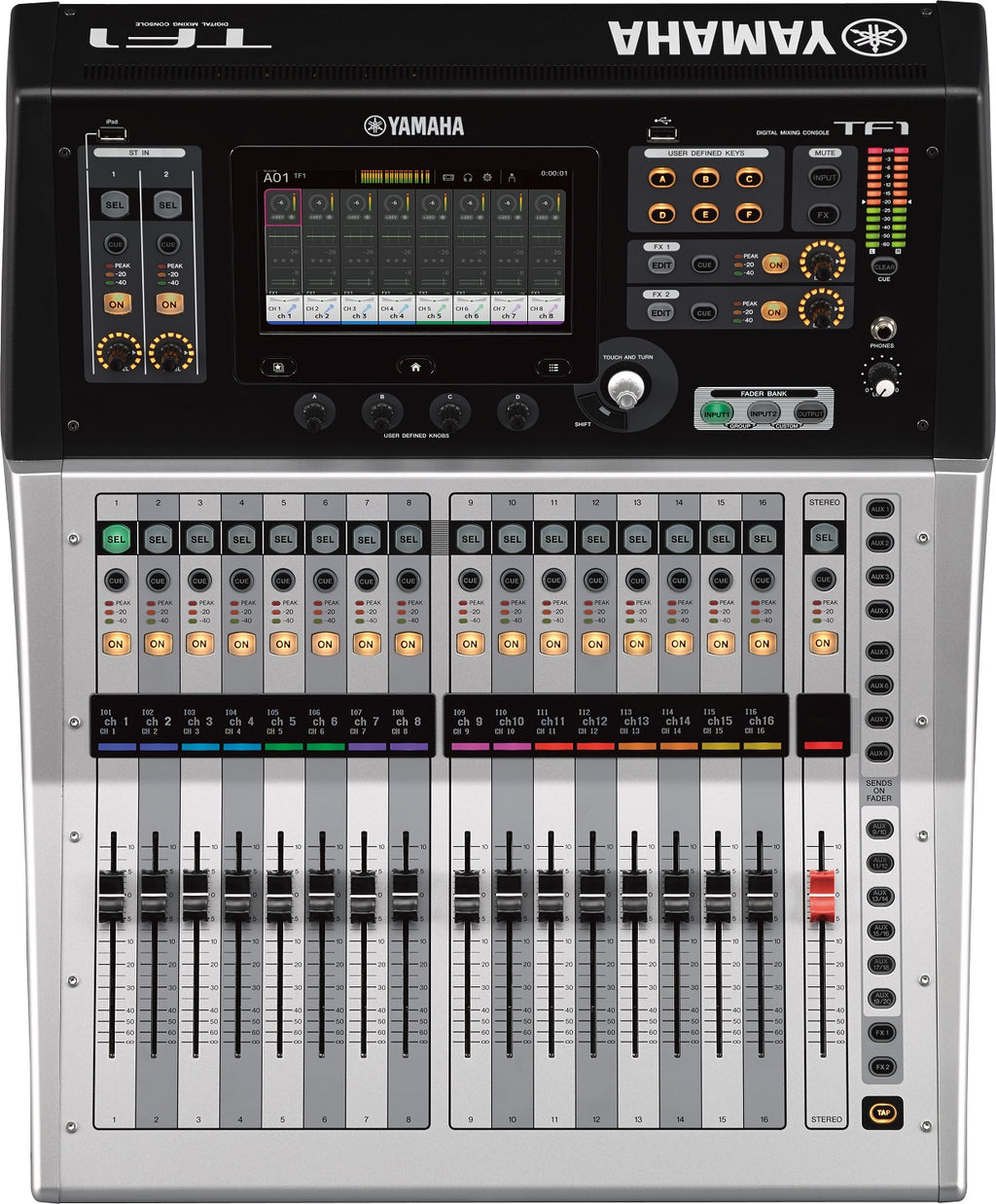

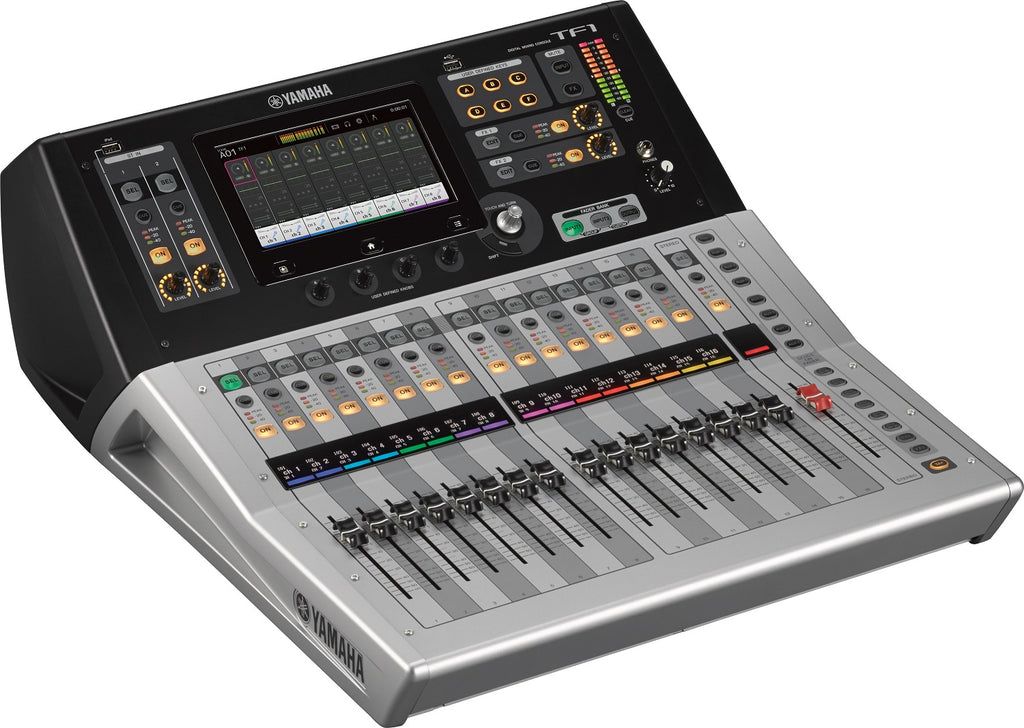

TF1 Yamaha 40-channel Digital mixer
TF1 Yamaha 40-channel Digital Mixer
Yamaha has always made it its mission to stay in touch with the needs of sound engineers worldwide. The result is evident in the success of the recent CL and QL series digital mixing consoles and the flagship RIVAGE PM10. The key to success has always been supporting the user's creativity. Creativity is most effective when it is unfettered, and now Yamaha has developed a new digital mixing console that gives even more free rein to the user's intuition. Introduced in the TF Series consoles, TouchFlow Operationâ„¢ allows the user to react to the music and artists on stage with unprecedented speed and freedom, taking live sound reinforcement to a new level of sophistication. With the TouchFlow Operation interface optimized for touch panel operation, both experienced engineers and newcomers to the field will find it easier than ever to achieve the ideal mix. Recordable D-PREâ„¢ preamplifiers support sound quality that will satisfy even the most demanding professional ears, while advanced live recording features and seamless operation with high-quality I/O racks give these compact digital mixers capabilities that make them an excellent choice for a wide range of applications. Experience the intuitive operation and creative freedom that a truly evolved digital console can offer.
Features
- 17 motor faders (16 channels + 1 master)
- 40 input mix channels (32 mono + 2 stereo + 2 return)
- 20 Aux sockets (8 mono + 6 stereo) + Stereo + Sub
- 8 DCA groups with Roll-out

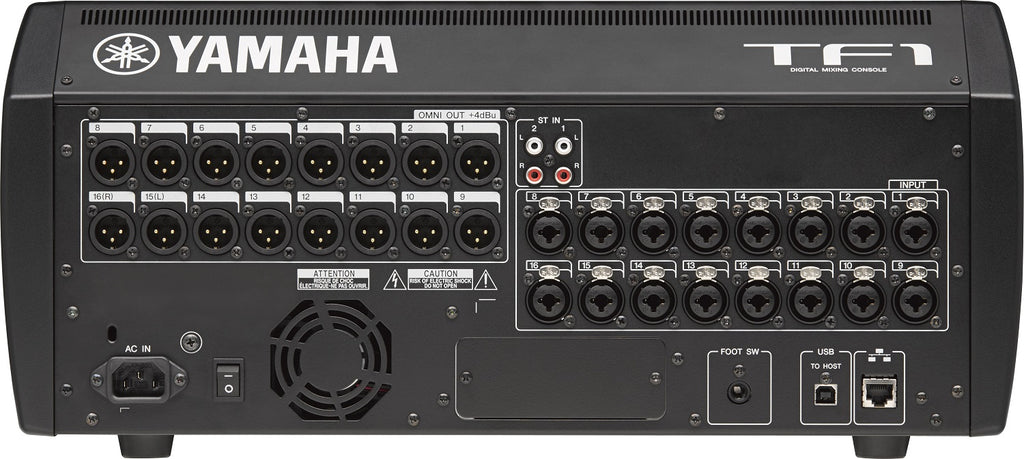

- 16 analog XLR/TRS combo microphone/line inputs + 2 analog RCA pin stereo line inputs
- 16 analog XLR outputs
- 34 x 34 digital record/playback channels via USB 2.0 + 2 x 2 via USB storage device
- 8 effects and 10 GEQ
- 1 expansion slot for NY64-D audio interface card
Korte specificaties
| Housing | |
|---|---|
| Dimensions | 510 mm x 225 mm x 599 mm |
| Weight | 13.5 kg |
| Sound | |
|---|---|
| Frequency response | +0.5, –1.5 dB 20 Hz–20 kHz, refer to +4 dBu output @1kHz, INPUT to OMNI OUT |
| THD (total harmonic distortion) | Less than 0.05% 20 Hz–20 kHz @+4 dBu into 600 Ω , INPUT to OMNI OUT, Input Gain=Min. (Measured with a –18 dB/octave filter@80 kHz) |
| Power supply | |
|---|---|
| Voltage | 100–240 V 50/60 Hz |
| Consumption | 100 W |
| Audio I/O | |
|---|---|
| Channels | 17 motor faders (16 channels + 1 master) / 40 input mixing channels (32 mono + 2 stereo + 2 return) |
| Outputs | 20 Aux buses (8 mono + 6 stereo) + Stereo + Sub |
| Digital audio | |
|---|---|
| Sample rate | 48 kHz |
| Network | |
|---|---|
| Network interface | IEEE802.3 10BASE-T/100Base-TX (RJ-45) |
