U308 BPG LD SYSTEMS - WIRELESS MICROPHONE SYSTEM + BODY PACK

The UHF Diversity Wireless Systems of the U300® Series were developed in Germany and provide excellent audio performance. They reach a range of 100 metres in ideal conditions and are available in five frequency bands: 584-608 MHz, 655-679 MHz, 823-832 MHz + 863-865 MHz, 470-490 MHz or 514-542 MHz. Up to six U300® systems can be used simultaneously in each frequency band. Convenient one-touch infrared synchronization provides a fast, trouble-free wireless connection between the transmitter and receiver, while a pilot-tone squelch ensures interference-free operation.

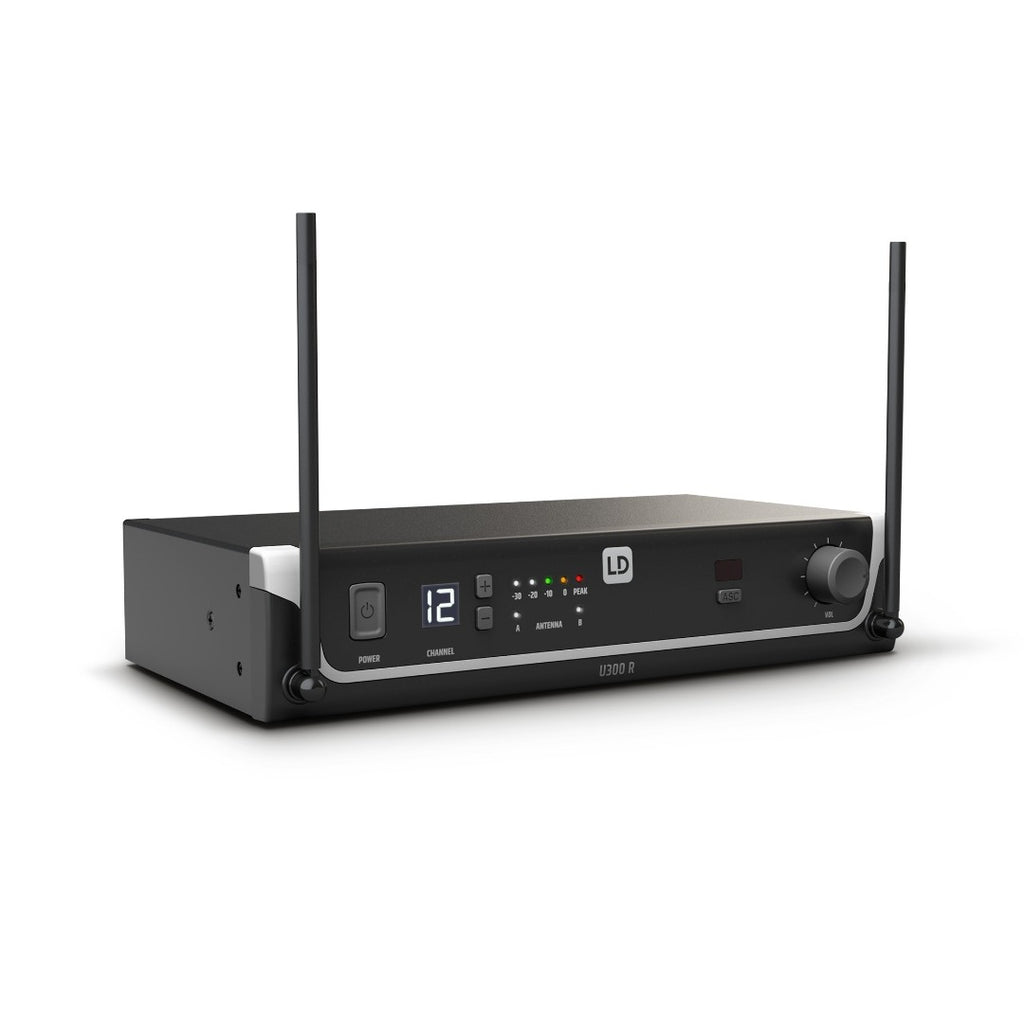

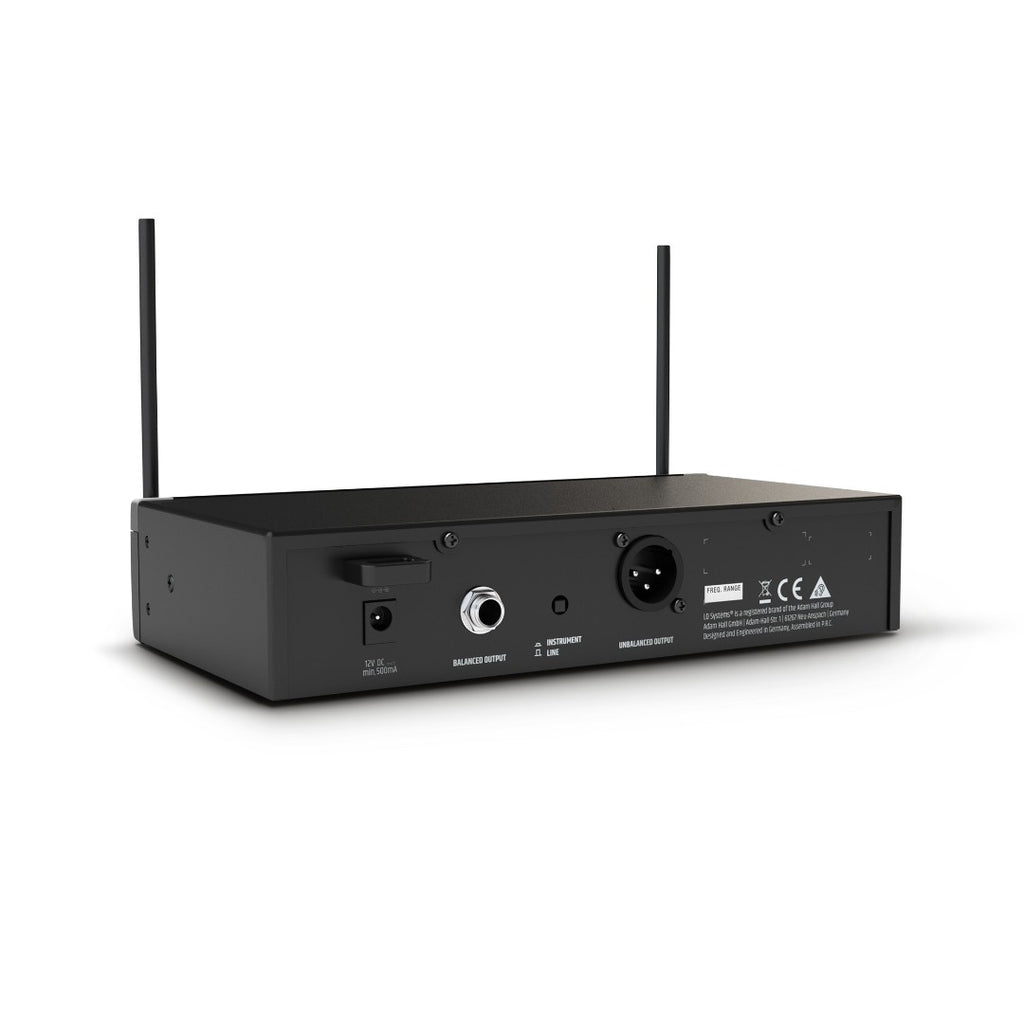

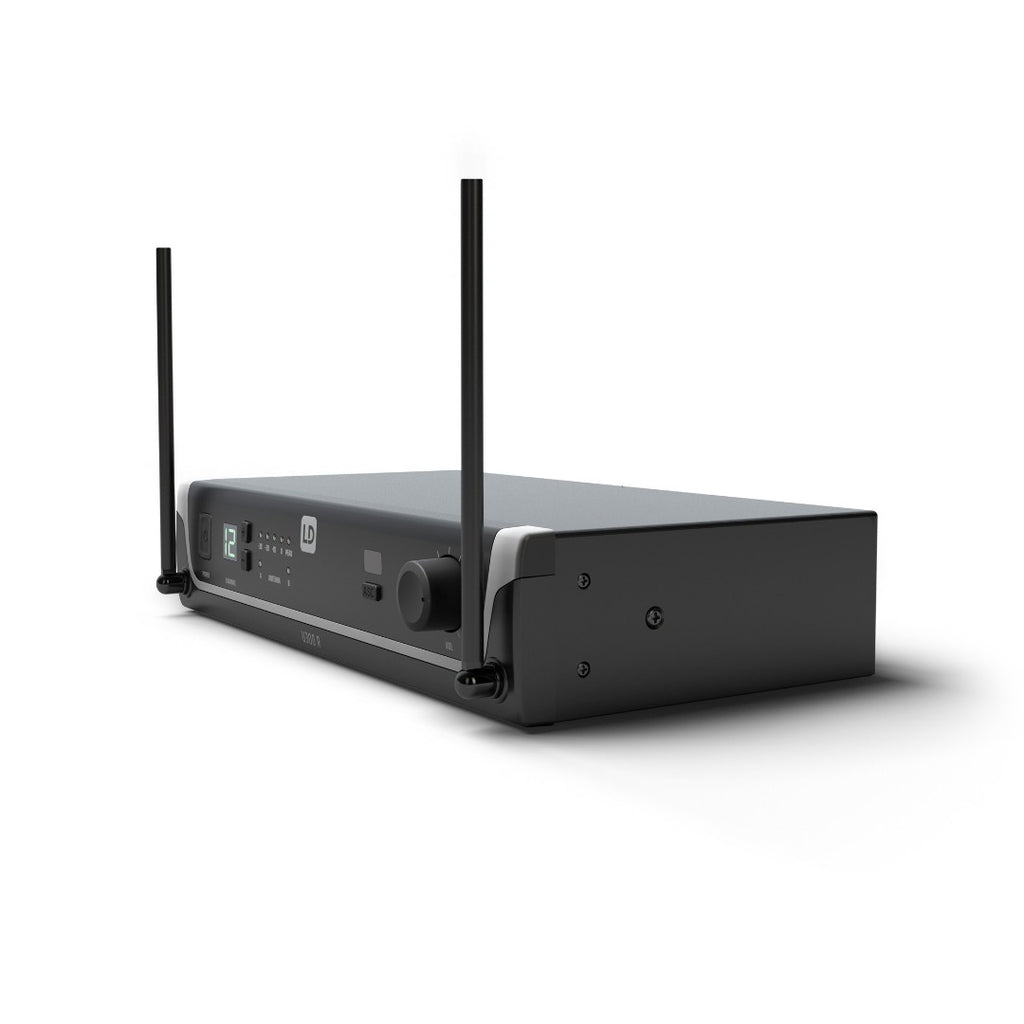

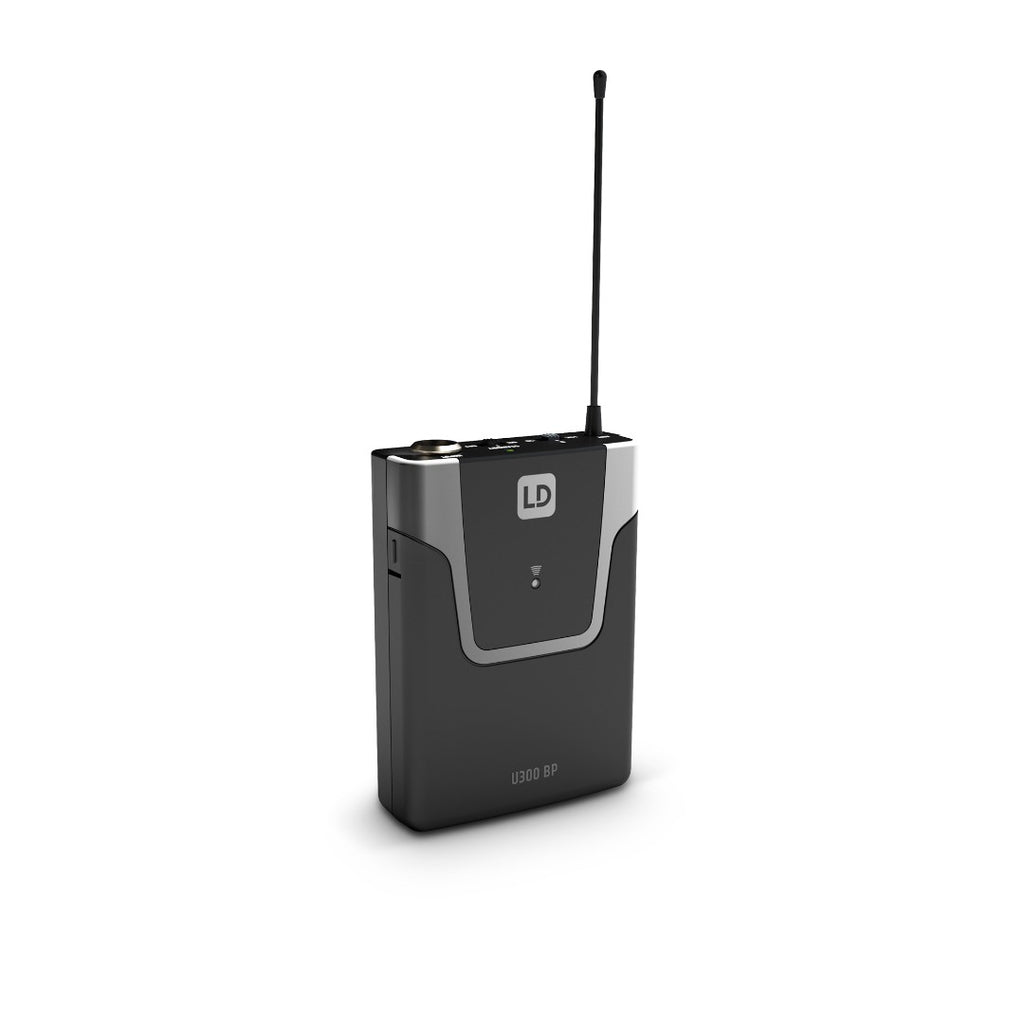

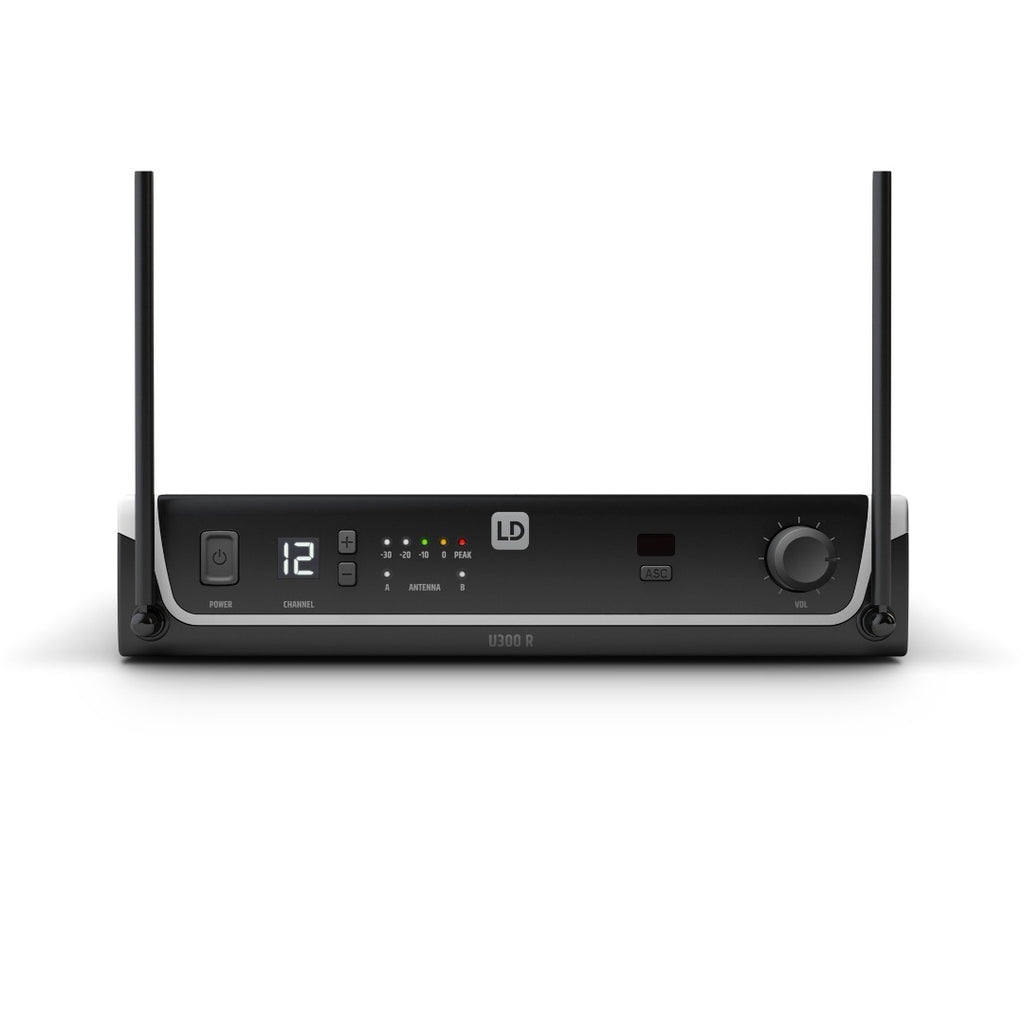

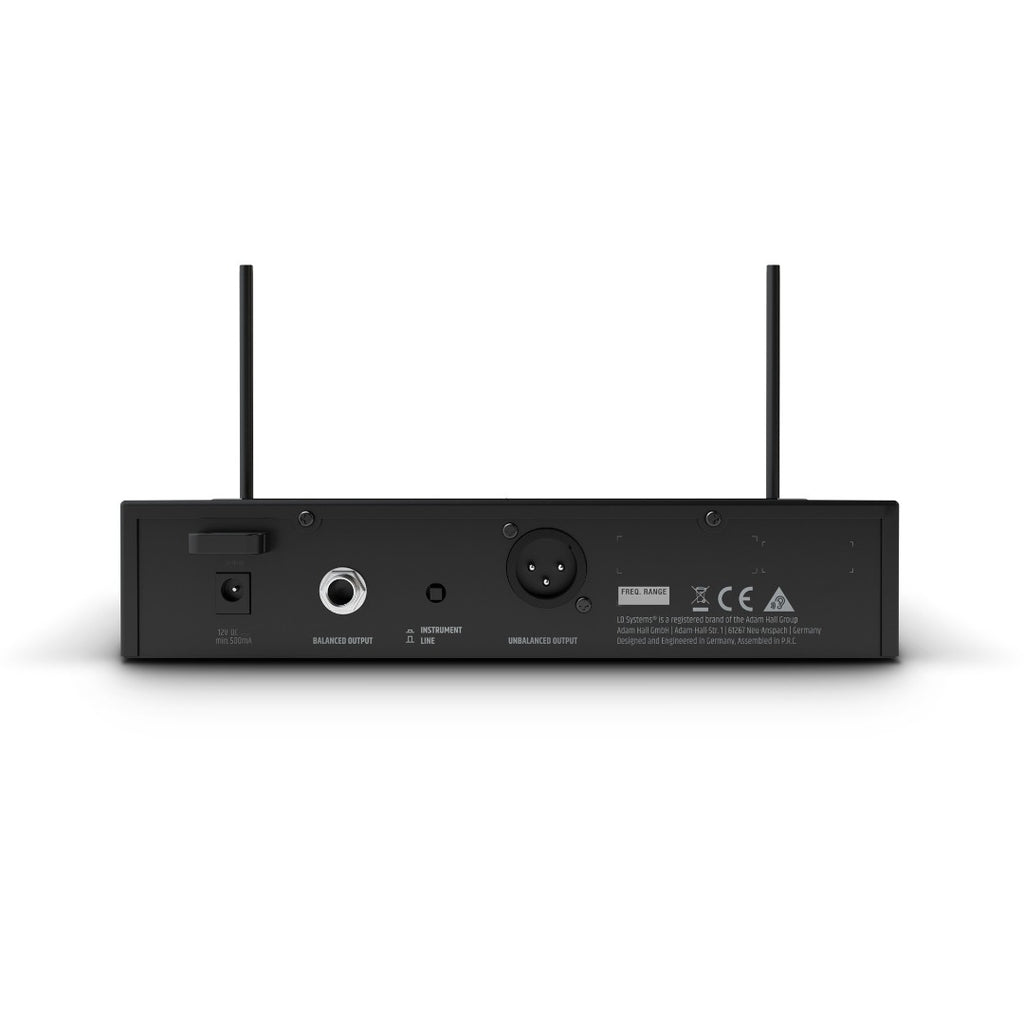

The U300® transmitters have a power output of 10 mW and an operating time of 10 hours on two AA batteries. The frequency response of the handheld microphone ranges from 55 Hz to 16 KHz. With a lower cut-off frequency of 25 Hz, the bodypack is also suitable for transmitting 5-string bass guitars with a deep H string. The input level of the bodypack can be adjusted for both active and passive guitars and basses over three levels. The on/off switch features a convenient standby mode for temporary muting. The U300® receiver is equipped with a bright LCD channel display, an LED chain for audio signal strength display and both a balanced XLR and unbalanced 6.35mm audio output. The audio output can also be switched to instrument level for direct connection to guitar and bass amps.

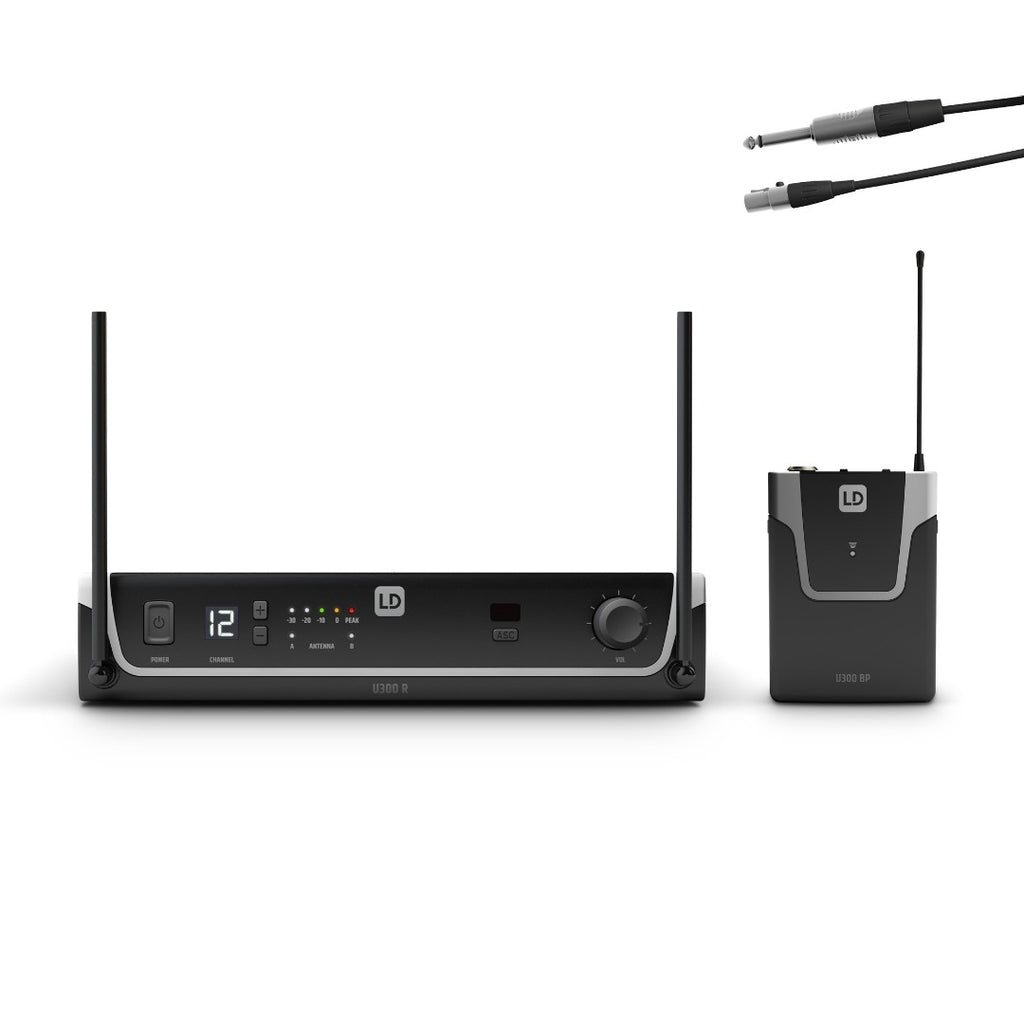

The U300® Series wireless systems have a fresh, modern design and are available as vocal sets with receiver and cardioid dynamic handheld microphone, bodypack and headset or bodypack and lavalier microphone. The microphone characteristics can be changed using replaceable heads from the U500® series. U300® instrument sets are available with bodypack and clip-on microphone for wind instruments or a double shielded low capacity cable for guitars and basses.
