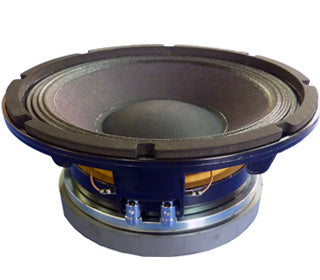

10MI100 8Ω MID FREQUENCY TRANSDUCER: M100 Series

Features:

• Very high efficiency (3%)
• Extremely linear frequency response
• Low harmonic distortion
• 3” edgewound aluminum voice coil with polymide fiber glass former
• Large magnetic assembly to provide efficient heat dissipation
• Designed for high quality mid-frequency reproduction

Specifications:

• Nominal diameter: 250 mm 10 in
• Nominal impedance: 8 ohm
• Minimum impedance: 6.6 ohm
• Power capacity: 350 W AES
• Program power: 700 W
• Sensitivity: 98 dB 1 W @ 1 m @ ZN
• Frequency range: 70-4000 Hz
• Voice coil diameter: 77 mm 3 in
• BL factor: 18.7 N/A
• Moving mass: 0.038 kg
• Winding length: 13.5 mm
• Air gap height: 10 mm
• Xdamage pp: 24 mm
