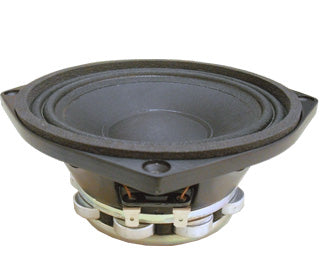

6MI100 MID FREQUENCY TRANSDUCER: MI100 Series

Features:

• High power handling (250 WAES).
• Good sensitivy (94 dB).
• Low harmonic distortion.
• Controlled dispersion up to 3 kHz.
• 2” aluminum voice coil with polymide glass fiber former.
• Designed for high quality mid-frequency reproduction.

Specifications:

• Nominal diameter: 165 mm 6.5 in
• Nominal impedance: 8 ohm
• Minimum impedance: 6.8 ohm
• Power capacity: 250 W AES
• Program power : 500 W
• Sensitivity: 94 dB @ 1 W @ ZN
• Frequency range: 100-8000 Hz
• Voice coil diameter: 51.7 mm 2 in
• BL factor: 10.8 N/A
• Moving mass: 0.014 kg
• Winding length: 9.2 mm
• Air gap height: 7 mm
