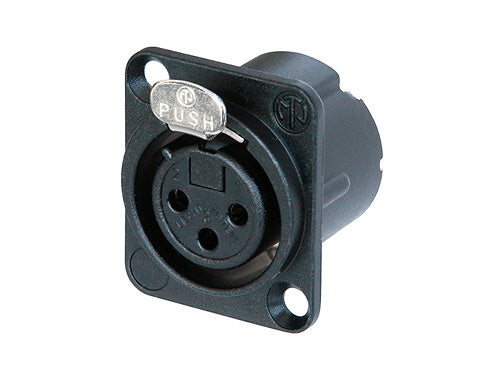

Neutrik 3 pole female XLR connector.

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Unique cage type female contact on 3 pole version increases conductivity and reduces wear on the mated male contact
• Female contact incorporates a solder barrier to prevent solder running into the contact mating area
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions
• Housing: Black

Specifications:
Product

• Title: NC3FD-LX
• Connection Type: XLR
• Gender: female

Electrical

• Capacitance between contacts: ≤ 4 pF
• Contact resistance: ≤ 5 mΩ
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 10 GΩ (initial)
• Rated current per contact: 16 A
• Rated voltage: < 50 V

Mechanical

• Insertion force: ≤ 20 N
• Withdrawal force: ≤ 20 N
• Lifetime: > 1000 mating cycles
• Wiresize: max. 2.5 mm²
• Wiresize: max. 14 AWG
• Wiring: Solder contacts
• Locking device: Latch lock
• Chassis shape: D

Material

• Contact plating: 2 µm Ag over 2 µm Ni
• Contacts: Bronze (CuSn6)
• Insert: Polyamide (PA 6.6 30 % GR)
• Locking element: Steel Ck67
• Shell: Zinc diecast (ZnAl4Cu1)
• Shell plating: Black

Environmental

• Flammability: UL 94 HB
• Standard compliance: IEC 61076-2-103
• Protection class: IP 40
• Solderability: Complies with IEC 68-2-20
• Temperature range: -30 °C to +80 °C
